Forced Convection AC Variable Frequency Drive / Variable Speed Frequency Drive 60 Hz

Name: Forced Convection AC Variable Frequency Drive / Variable Speed Frequency Drive 60 Hz
Brand: SCHNEIDER
SKU: ATV340U75N4
Price: 1.00 USD
Availability: InStock
Rating: 4.9 (177 reviews)

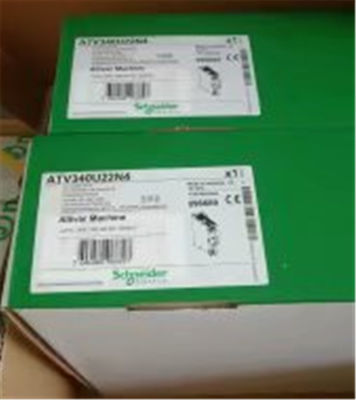

Large Image : Forced Convection AC Variable Frequency Drive / Variable Speed Frequency Drive 60 Hz Get Best Price

Product Details:

Place of Origin:	FRANCE
Brand Name:	SCHNEIDER
Certification:	CE
Model Number:	ATV340U75N4

Payment & Shipping Terms:

Minimum Order Quantity:	1 PCS
Price:	consult for best discount
Packaging Details:	schneider original package
Delivery Time:	2-15 days
Payment Terms:	T/T, , Western Union,Paypal,, MoneyGram,, L/C
Supply Ability:	100

Contact Now

Detailed Product Description

Type:	Variable Speed Drive	Application:	Machine
Type Of Cooling:	Forced Convection	Network Number Of Phases:	3 Phase
Rated Supply Voltage:	380 To 480 V	Supply Frequency:	50 60 Hz
High Light:	variable speed frequency drive , electrical variable speed drives , 3 phase variable frequency drive inverter

Schneider ATV340 Series Variable Frequency Drive Inverter Three Phases Drives AC Inverter

Applications

Designed for optimized installation, the Altivar Machine ATV340 drive offers cutting edge application control and advanced, easy to integrate automation capabilities. Its innovative features make it the drive of choice for OEMs entering – and rising to the challenges of – the smart machine era. The Altivar Machine ATV340 variable speed drives offer top level automation capabilities and outstanding motor control technology combined with simplicity. Altivar Machine ATV340 was engineered to maximize machine performance, reduce machine build time and sustain machine productivity.

Features

The Altivar Machine 340 is a powerful drive that aims to match your machine’s motor capabilities with maximum torque and speed performance. With an optimized speed bandwidth up to 400 Hz, the Altivar Machine 340 is designed for dynamic applications that may require faster acceleration or settling time.

The Altivar Machine 340 frequency inverters are very robust for high overloads, adaptable to the needs of demanding applications up to 220% nominal torque.
To meet the adaptability and the scalability your machine requires, Altivar Machine 340 is compatible with a wide range of motors such as asynchronous (IE2, IE3); synchronous; reluctance motors (IE4, IE5) for various applications in closed; and open loop.

Unprecedented automation performance
The Altivar Machine 340 will bring your machine to the next level of automation reaction time. Its real-time capabilities achieve the best possible machine control. The combination of ATV340 minimum application reaction time (1ms task cycle) and Ethernet connectivity in real-time, maximize your machine throughput.

Reduced machine design time

The Altivar Machine 340 will help you reduce your engineering time at every stage of the process so your machine is up and running sooner.

Simplified machine engineering
The Altivar Machine 340 accommodates numerous functions and features to simplify the machine design and reduces the engineering time from selection to commissioning.

Enriched variety of interfaces, numerous I/Os, Multi Ethernet protocol, PTI/PTO, embedded encoder as well as multiple option interfaces offers maximum flexibility in architecture design
Simple master slave configuration, positioning mode, integrated application functions facilitate and fulfill application performance for hoisting, material handling, material working and packaging machines.

Seamless automation integration
Ready-to-use EcoStruxure Machine application libraries that are Tested Validated and Documented (TVDA), combined with Ethernet services available in Altivar Machine 340 will facilitate your machine design and help you significantly reduce design time.

The ONE button auto-tuning for motor identification gives users the possibility to replicate the complete project in a fast and seamless manner ensuring maximum productivity in machine commissioning and production.

Sustained machine operation

Robust design for long-lasting operation and reliable service
Altivar Machine 340 has been designed to fulfil application requirements for harsh environments, such as vibration, shock and non-conductive dust and where high temperature resistance up to 60°C is needed.

Datasheet of Schneider ATV340 Series Variable Frequency Drive Inverter

range of product	Altivar Machine ATV340
product or component type	Variable speed drive
device application	Machine
device short name	ATV340
variant	Standard version
product destination	Asynchronous motors Synchronous motors
mounting mode	Cabinet mount
EMC filter	Integrated with 20 m motor cable maxi conforming to EN/IEC 61800-3 category C3
IP degree of protection	IP20 conforming to IEC 61800-5-1 IP20 conforming to IEC 60529
type of cooling	Forced convection
supply frequency	50...60 Hz +/- 5 %
network number of phases	3 phases
[Us] rated supply voltage	380...480 V - 15...10 %
motor power kW	11 kW (normal duty) 7.5 kW (heavy duty)
motor power hp	15 hp (normal duty) 10 hp (heavy duty)
line current	25.6 A at 380 V without line choke (heavy duty) 20.4 A at 480 V without line choke (heavy duty) 22 A at 380 V with external line choke (normal duty) 17.7 A at 480 V with external line choke (normal duty) 14.6 A at 380 V with external line choke (heavy duty) 12.1 A at 480 V with external line choke (heavy duty)
prospective line Isc	22 kA
apparent power	17 kVA at 480 V (normal duty) 17 kVA at 480 V (heavy duty)
continuous output current	16.5 A at 4 kHz (heavy duty) 24 A at 4 kHz (normal duty)
maximum transient current	24.8 A during 60 s (heavy duty) 26.4 A during 60 s (normal duty) 32.4 A during 2 s (normal duty) 29.7 A during 2 s (heavy duty)
asynchronous motor control profile	Constant torque standard Variable torque standard Optimized torque mode
synchronous motor control profile	Permanent magnet motor Reluctance motor
speed drive output frequency	0.1...599 Hz
nominal switching frequency	4 kHz
switching frequency	2...16 kHz adjustable 4...16 kHz with derating factor
safety function	STO (safe torque off) SIL 3
