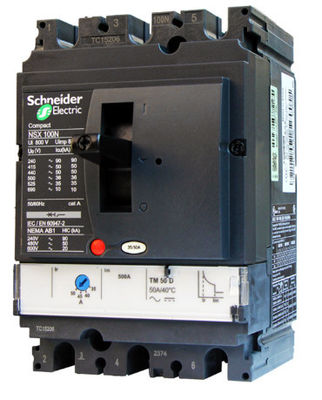

Compact NS NSX SERIES Miniature Circuit Breaker With Optional Functions 630 A

Compact NS NSX SERIES Miniature Circuit Breaker With Optional Functions 630 A

Compact NS NSX SERIES Miniature Circuit Breaker With Optional Functions 630 A
Compact NS NSX SERIES Miniature Circuit Breaker With Optional Functions 630 A Compact NS NSX SERIES Miniature Circuit Breaker With Optional Functions 630 A

Large Image :  Compact NS NSX SERIES Miniature Circuit Breaker With Optional Functions 630 A Get Best Price

Product Details:
Place of Origin: CHINA OR FRANCE
Brand Name: SCHNEIDER
Model Number: Schneider Compact NS NSX SERIES BREAKER
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Price: consult best discount
Packaging Details: schneider original package
Delivery Time: 2-7 days
Payment Terms: T/T, , Western Union,Paypal,, MoneyGram,, L/C
Supply Ability: 1000
Detailed Product Description
Type: Moulded Case Number Of Pole: 3P Or 4p
Phase: 3
High Light:

mini circuit breaker

,

mcb circuit breaker



Schneider Compact NSX molded case circuit breaker (MCCB) range is designed to optimize space and breaking capacity. The range comes in two frame sizes with a variety of optional functions and accessories.

Specifications:

  • Flexible installation: any position; switchboard or wall-mounted
  • Nominal current: 16 to 630 A
  • 9 Breaking capacities for the 2 sizes of circuit breakers:
    - up to 250 A: 25, 36, 50, 70, 100, 150, 200 kA at 415 V
    - up to 630 A: 36, 50, 70, 100, 150, 200 kA at 415 V
    - both size of circuit breakers with 75 & 100 kA at 690 V
  • 1, 2, 3 and 4 pole versions available
  • Large range of electronic and thermal-magnetic protections
  • Advanced trip unit with integrated power metering: I, U, P, E, THD, f, CosPhi
  • Interchangeable trip-units to upgrade your panel with smarter functions
  • Plug and ready wiring system and communicating accessories
  • Wealth of options for auxiliaries and accessories (field installable)
  • Integrated earth leakage protection via Micrologic Vigi coming soon in Q4 2018 (earth leakage circuit breaker - ELCB)



Benefits

  • Easy and efficient
    • Two standardized frame sizes for your convenience
    • Save space, time and effort with integrated earth leakage protection (ELCB), available in Q4 2018, in the molded case circuit breaker (MCCB) frame size
    • Easy to swap trip units and standardized accessories over time
    • Wide range of online and offline software tools that help to improve productivity at all stages of your project (Ecoreal, Ecodial, MyPact, Ecoreach)


    Optimize safety
    • Highly resistant to environmental stresses
    • Roto-active breaking technology helps to reduce early aging effects and increase operation lifespan


    Measure and Communicate
    • Local and remote communication with trip alarm (earth leakage, overload, short circuit) and pre- alarms (earth leakage) allowing you to proactively increase operational and energy efficiency
    • Advanced Micrologic trip unit can assist in providing corrective, preventative and predictive maintenance and energy management to identify potential savings

  • Supply all types Schneider TeSys LC1-D contactors,

NSX100F (36 kA 380/415 V)
3P 2D 3P 3D 4P 3D 4P 4D
TM16D LV429627 LV429637 871 LV429647 LV429657
TM25D LV429626 LV429636 871 LV429646 LV429656
TM32D LV429625 LV429635 871 LV429645 LV429655
TM40D LV429624 LV429634 871 LV429644 LV429654
TM50D LV429623 LV429633 871 LV429643 LV429653
TM63D LV429622 LV429632 871 LV429642 LV429652
TM80D LV429621 LV429631 871 LV429641 LV429651
TM100D LV429620 LV429630 871 LV429640 LV429650
NSX160F (36 kA 380/415 V)
3P 2D 3P 3D 4P 3D 4P 4D
TM80D LV430623 LV430633 LV430643 LV430653
TM100D LV430622 LV430632 LV430642 LV430652
TM125D LV430621 LV430631 LV430641 LV430651
NSX250F (36 kA 380/415 V)
3P 2D 3P 3D 4P 3D 4P 4D
TM125D LV431623 LV431633 LV431643 LV431653
TM160D LV431622 LV431632 LV431642 LV431652
TM200D LV431621 LV431631 LV431641 LV431651
TM250D LV431620 LV431630 LV431640 LV431650
Micrologic 2.2 (LS0I)
NSX100F (36 kA 380/415 V)
3P 3D 4P 3D, 4D, 3D+N/2
40 LV429772 LV429782
100 LV429770 LV429780
NSX160F (36 kA 380/415 V)
3P 3D 4P 3D, 4D, 3D+N/2
100 LV430771 LV430781
160 LV430770 LV430780
NSX250F (36 kA 380/415 V)
3P 3D 4P 3D, 4D, 3D+N/2
100 LV431772 LV431782
160 LV431771 LV431781
250 LV431770 LV431780
Micrologic 5.2 A
NSX100F (36 kA 380/415 V)
3P 3D 4P 3D, 4D, 3D+N/2, 3D+OSN
40 LV429882 LV429887
100 LV429880 LV429885
NSX160F (36 kA 380/415 V)
3P 3D 4P 3D, 4D, 3D+N/2, 3D+OSN
100 LV430881 LV430886
160 LV430880 LV430885
NSX250F (36 kA 380/415 V)
3P 3D 4P 3D, 4D, 3D+N/2, 3D+OSN
100 LV431862 LV431867
160 LV431861 LV431866
250 LV431860 LV431865
Micrologic 6.2 A
NSX100F (36 kA 380/415 V)
3P 3D 4P 3D, 4D, 3D+N/2, 3D+OSN
40 LV429003X62A40 LV429008X62A40
100 LV429003X62A100 LV429008X62A100
NSX160F (36 kA 380/415 V)
3P 3D 4P 3D, 4D, 3D+N/2, 3D+OSN
100 LV430403X62A100 LV430408X62A100
160 LV430403X62A160 LV430408X62A160
NSX250F (36 kA 380/415 V)
3P 3D P 3D, 4D, 3D+N/2, 3D+OSN
100 LV431403X62A100 LV431408X62A100
160 LV431403X62A160 LV431408X62A160
250 LV431403X62A250 LV431408X62A250
