SM322 Series Programmable Logic Controller / Digital Outputs PLC Power Supply Module

China SM322 Series Programmable Logic Controller / Digital Outputs PLC Power Supply Module supplier
SM322 Series Programmable Logic Controller / Digital Outputs PLC Power Supply Module supplier SM322 Series Programmable Logic Controller / Digital Outputs PLC Power Supply Module supplier SM322 Series Programmable Logic Controller / Digital Outputs PLC Power Supply Module supplier

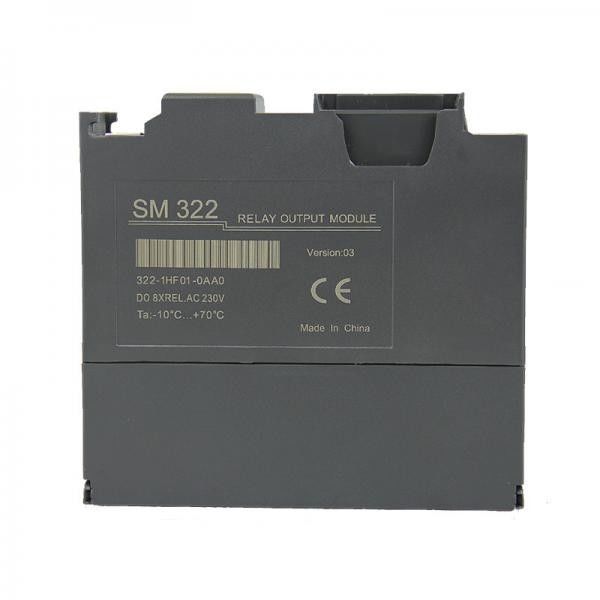

Large Image :  SM322 Series Programmable Logic Controller / Digital Outputs PLC Power Supply Module

Product Details:

Place of Origin: Germany
Brand Name: Siemens
Certification: CE
Model Number: SM 322 Digital Output Module

Payment & Shipping Terms:

Minimum Order Quantity: 1 PCS
Price: consult for best discount

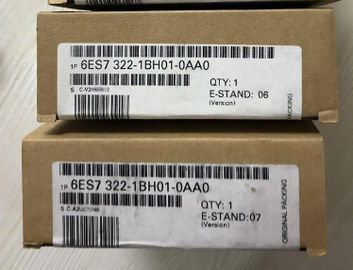

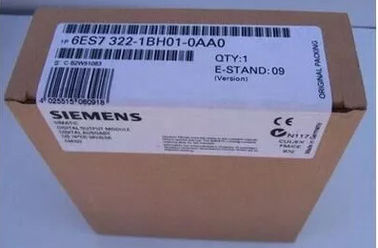

Packaging Details: Siemens original package
Delivery Time: 2-5 days
Payment Terms: T/T, , Western Union,Paypal,, MoneyGram,, L/C
Supply Ability: 500 Pcs/month
Contact Now
Detailed Product Description
Module Type: Output Type Application: Automation Systems
Condition: New&Original Lead Time: In Stock
Warranty: 12 Months Discount: Yes

                Siemens S7-300 SM322 PLC CPU Module SM322 Series Digital Output Module

Overview

  • Digital outputs
  • For connecting solenoid valves, contactors, low-power motors, lamps and motor starters
Application

Digital output modules can be used to output digital signals from the control to the process. They convert the internal signal levels of the S7-300 into the external signal levels required for the process.

They are suitable e.g., for connecting solenoid valves, contactors, small-power motors, lamps and motor starters.


Function

Digital output modules convert the internal signal level of the controller (logical "0" or "1") to the external signal level required by the process.

Various output voltages support the output of different process signals:

  • 24 V DC, rated current 0.5 A/channel
  • 24 V DC, rated current 2 A/channel
  • 48 to 125 V DC
  • 120/230 V AC

Apart from cost-effective, easy-to-handle digital output modules, modules with special functions are also available for process engineering.

Special modules are also available for process engineering which, for example, support the NAMUR standard.


Technical specifications


Article number

6ES7322

-1BH01

-0AA0

6ES7322

-1BH10

-0AA0

6ES7322

-1BL00

-0AA0

6ES7322

-1BP00

-0AA0

6ES7322

-1BP50

-0AA0

6ES7322

-8BF00

-0AB0



SM322,

16DO 24V DC,

0,5A

SM322HIGH

SPEED, 16DO

24VDC,0.5A

SM322,

32DO 24V DC,

0,5A

SM322 64DA,

DC24V,

0,3A P-WRITE

SM322 64DO,

DC24V,

0.3A M-WRITE

SM322, 8DO,

24V DC, 0,5A

Supply voltage
Load voltage L+
  • ● Rated value (DC)

24 V 24 V 24 V 24 V 24 V 24 V
  • ● permissible range, lower limit (DC)

20.4 V 20.4 V 20.4 V 20.4 V 20.4 V 20.4 V
  • ● permissible range, upper limit (DC)

28.8 V 28.8 V 28.8 V 28.8 V 28.8 V 28.8 V
Input current
from load voltage L+ (without load), max. 80 mA 110 mA 160 mA 75 mA 75 mA 90 mA
from backplane bus 5 V DC, max. 80 mA 70 mA 110 mA 100 mA 100 mA 70 mA
Power loss
Power loss, typ. 4.9 W 5 W 6.6 W 6 W 6 W 5 W
Digital outputs
Number of digital outputs 16 16 32 64 64 8
Limitation of inductive shutdown voltage to L+ (-53 V) L+ (-53 V) L+ (-53 V) L+ (-53 V) M+ (45 V) L+ (-45 V)
Switching capacity of the outputs
  • ● on lamp load, max.

5 W 5 W 5 W 5 W 5 W 5 W
Load resistance range
  • ● lower limit

48 Ω 48 Ω 48 Ω 80 Ω 80 Ω 48 Ω
  • ● upper limit

4 kΩ 4 kΩ 4 kΩ 10 kΩ 10 kΩ 3 kΩ
Output voltage
  • ● for signal "1", min.

L+ (-0.8 V) L+ (-0.8 V) L+ (-0.8 V) L+ (-0.5 V) M+ (0.5 V) L+ (-0.8 to -1.6 V)
Output current
  • ● for signal "1" rated value

0.5 A 0.5 A 0.5 A 0.3 A 0.3 A 0.5 A
  • ● for signal "1" permissible range, min.

      2.4 mA 2.4 mA
  • ● for signal "1" permissible range, max.

      0.36 A 0.36 A
  • ● for signal "1" minimum load current

5 mA 5 mA 5 mA     10 mA
  • ● for signal "0" residual current, max.

0.5 mA 0.5 mA 0.5 mA 0.1 mA   0.5 m


Article number

6ES7322-5GH00

-0AB0

6ES7322-1CF00

-0AA0

6ES7322-1BF01

-0AA0

6ES7322-1FF01

-0AA0

6ES7322-5FF00

-0AB0

6ES7322

-1FH00-0AA0



SM322, 16DO, AC/DC24-48V, 0,5A

SM322, 8DO, 48-125V DC, 1,5A

SM322, 8DO, 24V DC, 2A

SM322, 8DO, 120/230V AC, 1A

SM322, 8DO, AC120/230V, 2A

SM322, 16DO, 120/230V AC, 1A

Supply voltage
Load voltage L+
  • ● Rated value (DC)

24 V; 24 / 48 48 V; 48 V DC to 125 V DC 24 V
  • ● permissible range, lower limit (DC)

20.4 V 40 V 20.4 V
  • ● permissible range, upper limit (DC)

57.6 V 140 V 28.8 V
Load voltage L1
  • ● Rated value (AC)

      230 V; 120/230 V AC 230 V; 120/230 V AC 230 V; 120/230 V AC
  • ● permissible range, lower limit (AC)

      93 V 79 V 79 V
  • ● permissible range, upper limit (AC)

      264 V 264 V 264 V
Input current
from supply voltage L+, max. 200 mA
from load voltage L+ (without load), max.   2 mA 60 mA
from load voltage L1 (without load), max.       2 mA 2 mA 2 mA
from backplane bus 5 V DC, max. 100 mA 100 mA 40 mA 100 mA 100 mA 200 mA
Power loss
Power loss, typ. 2.8 W 7.2 W 6.8 W 8.6 W 8.6 W 8.6 W
Digital outputs
Number of digital outputs 16 8 8 8 8 16
Limitation of inductive shutdown voltage to   M (-1 V) L+ (-48 V)
Switching capacity of the outputs
  • ● on lamp load, max.

2.5 W 15 W; 15 W (48 V) or 40 W (125 V) 10 W 50 W 50 W 50 W
Load resistance range
  • ● lower limit

    12 Ω
  • ● upper limit

    4 kΩ
Output voltage
  • ● for signal "1", min.

L+ (-0.25 V) L+ (-1.2 V) L+ (-0.8 V) L1 (-1.5 V) L1 (-8.5 V)
Output current
  • ● for signal "1" rated value

0.5 A 1.5 A 2 A 2 A 2 A 1 A
  • ● for signal "1" minimum load current

  10 mA 5 mA 10 mA 10 mA 10 mA
  • ● for signal "1" permissible surge current, max.

1.5 A; for 50 ms, 1 A 2 s one-time 3 A; for 10 ms   20 A; max. 1 AC cycle 20 A; with 2 half waves 20 A; with 2 half waves
  • ● for signal "0" residual current, max.

10 µA 0.5 mA 0.5 mA 2 mA 2 mA 2 mA


S7-300 SM 321 Series Digital Input Module Main Models:

6ES7 322-1BH01-0AA0     6ES7 322-1BH10-0AA0

6ES7 322-1CF00-0AA0     6ES7 322-8BF00-0AB0

6ES7 322-5GH00-0AB0    6ES7 322-1BL00-0AA0

6ES7 322-1FL00-0AA0     6ES7 322-1BF01-0AA0

6ES7 322-1FF01-0AA0     6ES7 322-5FF00-0AB0

6ES7 322-1HF01-0AA0     6ES7 322-1HF10-0AA0

6ES7 322-1HH01-0AA0     6ES7 322-5HF00-0AB0

6ES7 322-1FH00-0AA0     6ES7 323-1BH01-0AA08

6ES7 323-1BL00-0AA0
