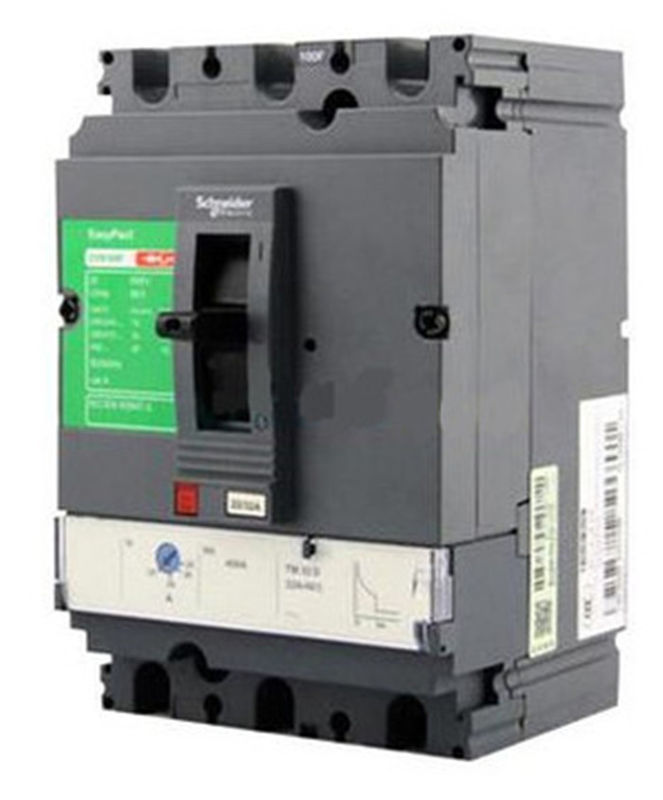

Easy Pact CVS MCCB Circuit Breaker Schneider , Buildings 3 Pole MCCB Circuit Breaker

Easy Pact CVS MCCB Circuit Breaker Schneider , Buildings 3 Pole MCCB Circuit Breaker

Easy Pact CVS MCCB Circuit Breaker Schneider ,  Buildings 3 Pole MCCB Circuit Breaker
Easy Pact CVS MCCB Circuit Breaker Schneider ,  Buildings 3 Pole MCCB Circuit Breaker Easy Pact CVS MCCB Circuit Breaker Schneider ,  Buildings 3 Pole MCCB Circuit Breaker

Large Image :  Easy Pact CVS MCCB Circuit Breaker Schneider , Buildings 3 Pole MCCB Circuit Breaker Get Best Price

Product Details:
Place of Origin: FRANCE
Brand Name: SCHNEIDER
Certification: CE
Model Number: CVS type
Payment & Shipping Terms:
Minimum Order Quantity: 1 PCS
Price: consult best discount
Packaging Details: schneider original package
Delivery Time: 2-5 days
Payment Terms: T/T, , Western Union,Paypal,, MoneyGram,, L/C
Supply Ability: 500
Detailed Product Description
Installation: Fixed Rated Insulation: 690V
Rated Current: Up To 630A Color Of Body: Dark Grey
Material: Plastic Shell Number Of Poles: 3p Or 4p
High Light:

thermal magnetic circuit breaker

,

electrical circuit breaker

    Schneider Compact NSX Molded Case Circuit Breakers 16 to 630A Electrical Breaker MCCB



Application
The design of CNSV series of MCCB(shorted as circuit breaker)reflects the latest current limiting principle and manufacturing technology,characterized by compact structure,full modularization,high breaking,and zero arcover.Its rated insulation voltage is 690V,rated operating voltage is AC50/60Hz, 440V and below, rated working current up to 630A.Its used for generating infrequent conversion and infrequent start up of the motor. Circuit breaker is equipped with overload, shor circuit and under voltage protection devices,so as to protect the circuit and E typecompact power equipments from damage.



Features

EasyPact CVS range is the easy choice for quality and value.
Designed to meet the requirements of the majority of common protection applications in small to medium-sized buildings, EasyPact CVS circuit breakers deliver a high level of performance and cost-saving functionality that is unusual in their price range.

  • Rated current from 16 to 630 A
  • Breaking capacity from 25 to 50 kA at 400/415 V
  • 3 and 4 pole versions
  • 3 frame sizes
  • Thermal-magnetic and electronic protection available for the entire range
  • Extended, adjustable thermal protection from 0.7 to 1 times (TMD) or 0.5 to 1 times (electronic) the rating of the trip unit
  • Common accessories and auxiliaries with other Schneider Electric MCCB offers
  • Suitable for isolation
  • Earth-leakage protection by associated Vigi Module
  • Switch-disconnector versions also available
  • Compliance with international standards: IEC 60947-2, CCC, EAC and other local certifications
  • Green Premium product

Product Information For Reference

Item No. CNSV-250
Number of poles 4P
Control Manuanl

with toggle/with direct

or extend rotary handle

Connection Fixed front connections
Plug-in front connections /rear connection
Electrical characteristics as per IEC60947-2 and EN60947-2
Rated current (A) In 40℃

Rated insulation voltage

(V)

Ui 690
Rated impulse withstand voltage (KV) Uimp 8
Rated operational voltage (V) Ue AC50/60Hz 440V
Utilization category A
Operation performance Mechanical 8500 6000
Electrical 1500 1000
Protection ChartA-1
Indication and control auxiliaries
Auxiliary switch
Mx Shunt coil
Mn under-voltage coil



Easy Pact CVS MCCB Circuit Breaker Schneider ,  Buildings 3 Pole MCCB Circuit Breaker 0
