NSX630N Mic2.3 630A 3P3D Molded Case Circuit Breaker Compact High Performance

Certification
Good quality PLC CPU Module for sales
I'm Online Chat Now

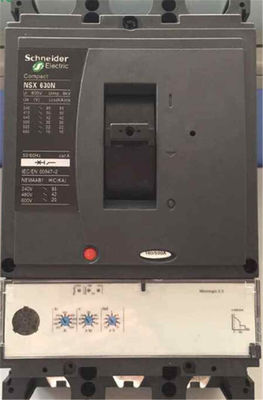

NSX630N Mic2.3 630A 3P3D Molded Case Circuit Breaker Compact High Performance

China NSX630N Mic2.3 630A 3P3D Molded Case Circuit Breaker Compact High Performance supplier
NSX630N Mic2.3 630A 3P3D Molded Case Circuit Breaker Compact High Performance supplier NSX630N Mic2.3 630A 3P3D Molded Case Circuit Breaker Compact High Performance supplier

Large Image :  NSX630N Mic2.3 630A 3P3D Molded Case Circuit Breaker Compact High Performance

Product Details:

Place of Origin: FRANCE
Brand Name: SCHNEIDER
Certification: UL CE
Model Number: NSX630N NSX400N NSX100N

Payment & Shipping Terms:

Minimum Order Quantity: 1 PCS
Price: consult best discount
Packaging Details: schneider original package
Delivery Time: 2-5 days
Payment Terms: T/T, , Western Union,Paypal,, MoneyGram,, L/C
Supply Ability: 500
Contact Now
Detailed Product Description
Product Name: Compact NSX Device Application: Distribution
Poles Description: 3P Protected Poles Description: 3t
Network Type: AC Network Frequency: 50/60 Hz

          Schneider NSX630N Mic2.3 630A 3P3D Molded Case Circuit Breaker Compact High Performance MCCB



Features

The Compact NSX molded case circuit breaker (MCCB) range is designed to optimize space and breaking capacity. The range comes in two frame sizes with a variety of optional functions and accessories.



Specifications:

  • Flexible installation: any position; switchboard or wall-mounted
  • Nominal current: 16 to 630 A
  • 9 Breaking capacities for the 2 sizes of circuit breakers:
    - up to 250 A: 25, 36, 50, 70, 100, 150, 200 kA at 415 V
    - up to 630 A: 36, 50, 70, 100, 150, 200 kA at 415 V
    - both size of circuit breakers with 75 & 100 kA at 690 V
  • 1, 2, 3 and 4 pole versions available
  • Large range of electronic and thermal-magnetic protections
  • Advanced trip unit with integrated power metering: I, U, P, E, THD, f, CosPhi
  • Interchangeable trip-units to upgrade your panel with smarter functions
  • Plug and ready wiring system and communicating accessories
  • Wealth of options for auxiliaries and accessories (field installable)
  • Integrated earth leakage protection via Micrologic Vigi coming soon in Q4 2018 (earth leakage circuit breaker - ELCB)
Applications

An excellent choice for all standard and specific applications, including:

  • Standard applications: industries, buildings, infrastructures
  • Specific applications demanding high performance: marine, oil and gas extraction and processing, mining operations, metals and minerals production, and data centers
  • IEC/EN 60947-1 and 2, IEC 60068-2-30 for type 2 tropicalisation, CCC, EAC and other local certifications
  • Compliance with specifications of marine classification companies: Bureau Veritas, Lloyd’s Register of Shipping, DetNorske Veritas and RINA
  • The Compact NSX molded case circuit breaker (MCCB) range is designed to optimize space and breaking capacity. The range comes in two frame sizes with a variety of optional functions and accessories.

  • NSX630N Mic2.3 630A 3P3D Molded Case Circuit Breaker Compact High Performance

    NSX630N Mic2.3 630A 3P3D Molded Case Circuit Breaker

    range

    Compact

    product name
    Compact NSX

    product or component type
    Circuit breaker

    device short name
    Compact NSX630N

    device application
    Distribution

    poles description
    3P

    protected poles description
    3t

    network type
    AC

    network frequency
    50/60 Hz

    [In] rated current
    630 A ( 40 °C )

    [Ui] rated insulation voltage
    800 V AC 50/60 Hz

    [Uimp] rated impulse withstand voltage
    8 kV

    [Ue] rated operational voltage
    690 V AC 50/60 Hz

    breaking capacity code
    N (50 kA) AC

    breaking capacity
    10 kA Icu at 660/690 V AC 50/60 Hz conforming to IEC 60947-2
    22 kA Icu at 525 V AC 50/60 Hz conforming to IEC 60947-2
    85 kA Icu at 220/240 V AC 50/60 Hz conforming to IEC 60947-2
    30 kA Icu at 500 V AC 50/60 Hz conforming to IEC 60947-2
    42 kA Icu at 440 V AC 50/60 Hz conforming to IEC 60947-2
    50 kA Icu at 380/415 V AC 50/60 Hz conforming to IEC 60947-2
    20 kA at 600 V AC 50/60 Hz conforming to UL 508
    50 kA at 480 V AC 50/60 Hz conforming to UL 508
    85 kA at 240 V AC 50/60 Hz conforming to UL 508

    [Ics] rated service breaking capacity
    Ics 10 kA 660/690 V AC 50/60 Hz conforming to IEC 60947-2
    Ics 11 kA 525 V AC 50/60 Hz conforming to IEC 60947-2
    Ics 30 kA 500 V AC 50/60 Hz conforming to IEC 60947-2
    Ics 42 kA 440 V AC 50/60 Hz conforming to IEC 60947-2
    Ics 50 kA 380/415 V AC 50/60 Hz conforming to IEC 60947-2
    Ics 85 kA 220/240 V AC 50/60 Hz conforming to IEC 60947-2

    suitability for isolation
    Yes conforming to EN 60947-2
    Yes conforming to IEC 60947-2

    utilisation category
    Category A

    trip unit name
    Micrologic 2.3

    trip unit technology
    Electronic

    trip unit protection functions
    LSoI

    trip unit rating
    630 A ( 40 °C )

    protection type
    Instantaneous short-circuit protection
    Overload protection (long time)
    Short time short-circuit protection

    pollution degree
    3 conforming to IEC 60664-1

    Complementary
    control type
    Toggle

    mounting mode
    Fixed

    mounting support
    Backplate

    upside connection
    Front

    downside connection
    Front

    auxiliary contact composition
    Without

    mechanical durability
    15000 cycles

    electrical durability
    2000 cycles 690 V In conforming to IEC 60947-2
    4000 cycles 440 V In conforming to IEC 60947-2
    6000 cycles 690 V In/2 conforming to IEC 60947-2
    8000 cycles 440 V In/2 conforming to IEC 60947-2

    connection pitch
    45 mm

    local signalling
    LED 105 % Ir
    LED 90 % Ir
    LED ready

    long time pick-up adjustment type Ir
    Adjustable 9 settings

    long time pick-up adjustment range
    0.9...1 x Io

    long time delay adjustment type
    Fixed

    [tr] long-time delay adjustment range
    16 s 6 x Ir

    thermal memory
    20 minutes before and after tripping

    short-time pick-up adjustment type Isd
    Adjustable 9 settings
