Product Details:
Payment & Shipping Terms:
|
| Product Name: | OT Copper Tube Lug | Material: | Copper |
|---|---|---|---|
| Application: | Wire Connecting | Surface Treatment: | Customer's Requirments |
| High Light: | OT Tinned Cable Crimp Connectors,Copper Cable Crimp Connectors,One Hole Copper Crimp Terminal |
||

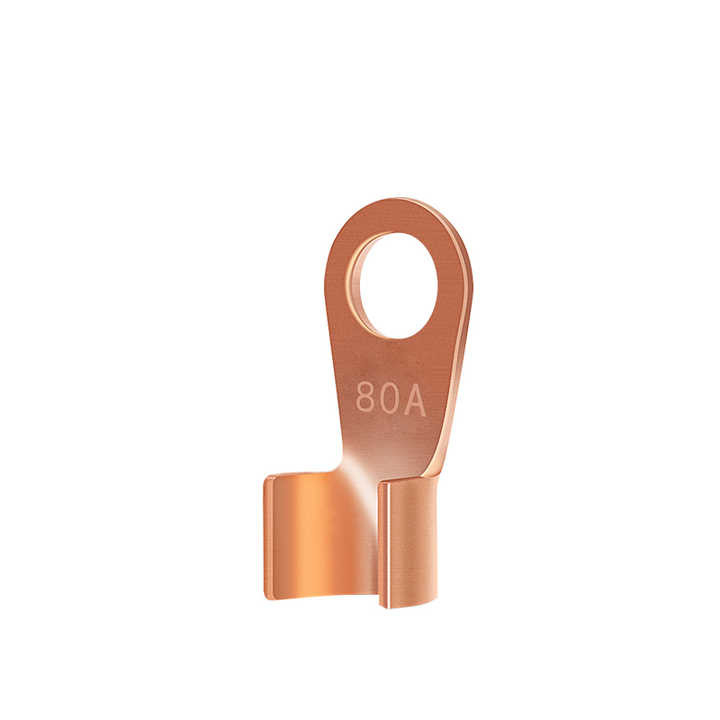

OT tinned open terminal lug Tubular One Hole Copper Crimp Terminal Lug Open Copper Nose cable connectors terminals
OVERVIEW
1. Supply to Europe,Austrilia, Africa and Middle East
2. Matrial: Brass / Copper Cold Pressed Terminal
3. Professional Perfomance Fastener Supplier
4. High Quality Cold Pressed Terminal
| Product Name | RNB OT brass copper sliver plating brazed naked ring type crimp cold pressed wire terminal | ||
| Style | UT,OT, RNB, etc | ||
| Surface Treatment | Tin Plated, Silver Plating | ||
| Size | 0.5, 1, 1.5, 2, 2.5, 4, 6, 10, 16, 25/ or according to your requirement | ||
| Quality Policy | All the parts manufactured 100% inspection from OQC before shipping. | ||
| Package | Bulk in PE bag or Small boxes.then in carton, pallet | ||
| Used | Building industry machinery electronic,etc | ||
| Non-standards | OEM is available, according to drawing or samples | ||

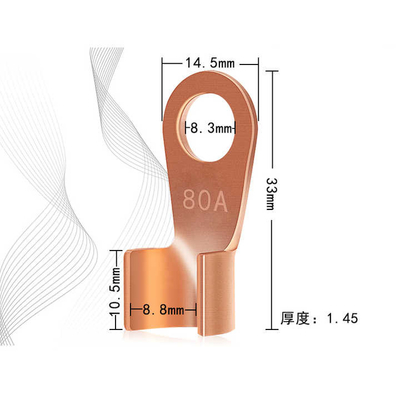

Specification
| Model | Dimensions(mm) | ||||
| φ | H | L | R | R1 | |
| OT-10A | 5.2 | 6 | 14.5 | 4.5 | 2 |
| OT-20A | 6.2 | 7 | 17 | 5.5 | 2.5 |
| OT-30A | 6.2 | 8 | 19 | 5.8 | 3.2 |
| OT-40A | 6.2 | 8.5 | 19.5 | 6 | 3.5 |
| OT-50A | 6.2 | 9 | 21.5 | 6.5 | 3.5 |
| OT-60A | 8.4 | 10 | 23 | 7 | 4 |
| OT-80A | 8.4 | 10 | 25 | 7.5 | 4.5 |
| OT-100A | 8.4 | 12 | 29 | 8.5 | 5.5 |
| OT-150A | 10.4 | 12 | 31 | 9 | 6 |
| OT-200A | 10.4 | 14 | 33 | 10 | 6.5 |
| OT-250A | 12.4 | 15 | 36 | 10.5 | 7 |
| OT-300A | 12.4 | 16 | 40 | 11.5 | 8 |
| OT-400A | 14.5 | 18 | 43 | 13 | 9 |
| OT-500A | 14.5 | 20 | 46 | 14.5 | 10 |
| OT-600A | 16.5 | 22 | 50.5 | 16 | 10.5 |
| OT-800A | 18.5 | 28 | 57 | 18 | 12.5 |
| OT-1000A | 18.5 | 33 | 66 | 20.5 | 15.5 |
About Our Terminal
✔️ANY WIRE WITH EASE - Self Stripping Electrical T Tap Connectors will tap into any wire without needing to cut, strip or solder. Installation operation has never been easier before
✔️PREMIUM QUALITY - 100% Brand new high quality insulated crimp terminals connectors , quality copper and PVC materials processing,Thicker tinned copper contacts will not bend even when tapping into thicker wires. Plastic housing will not open after it has been snapped on the wire
✔️DURABILITY - Each terminal features a thick tinned copper barrel that resists corrosion to hold the wire tight when crimped. High-temperature resistance up to 221degree Fahrenheit
✔️WIDE APPLICATIONS -Wire Connectors +Male Quick Disconnects will last for numerous wiring projects. Marine, automotive, scientific, home wiring projects - you name it. ABILKEEN connector kit will allow you to quickly tap into any wire in any application.
✔️ABILKEEN BRAND QUALITY COMMITMENT - We stand behind the quality of our products. If for any reason you are not satisfied with your purchase, please contact us.
