Product Details:
Payment & Shipping Terms:
|
| Electricity TypeE: | AC | Pole: | 3 Pole |
|---|---|---|---|
| Phase: | 3 | Frequency: | 50/60 HZ |
| Application: | Motor Control | Power Range: | Up To 45 KW |
| High Light: | siemens electrical contactors,siemens electrical contactors |
||

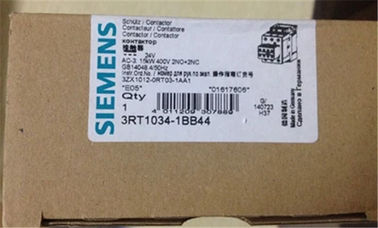

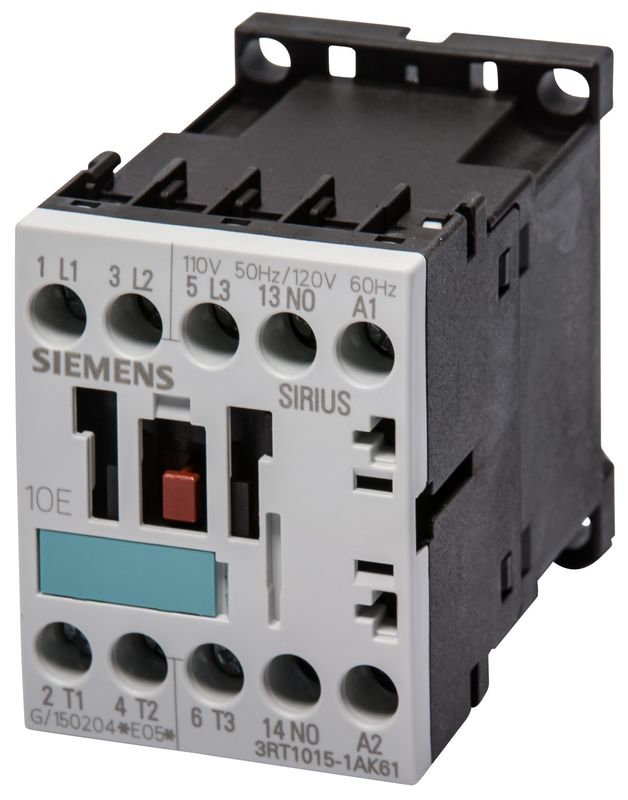

Siemens SIRIUS 3RT1 Electrical Contactor Switch 3RT101 102 103 104 AC Contactors
Application
3RT series AC Contactor is suitable for using in the circuits up to the rated voltage 660V AC 50Hz or 60Hz, rated current up to 150A, for making, breaking, frequently starting & controlling the AC motor. Combined with the auxiliary contact block, timer delay & machine-interlocking device etc, it becomes the delay contactor, mechanical interlocking contactor, star-delta starter. With the thermal relay, it is combined into the electromagnetic starter. The Contactor is produced according to IEC947-2, VDE0660 & BS5452.
Main Technical specifications:
| Model | 3RT10 1 | 3RT10 2 | 3RT10 3 | 3RT10 4 | ||||||||||
| 3RT10 15 3RT10 16 3RT10 17 |
3RT10 23 3RT10 24 3RT10 25 3RT10 26 |
3RT10 34 3RT10 35 3RT10 36 |
3RT10 44 3RT10 45 3RT10 46 |
|||||||||||
| AC-3 | ||||||||||||||
| /e/AC-3/400V A | 7 | 9 | 12 | 9 | 12 | 17 | 25 | 32 | 40 | 50 | 65 | 80 | 95 | |
| 400V KW | 3 | 4 | 5.5 | 4 | 5.5 | 7.5 | 11 | 15 | 18.5 | 22 | 30 | 37 | 45 | |
| 230V KW | 2.2 | 3 | 3 | 3 | 3 | 4 | 5.5 | 7.5 | 11 | 15 | 18.5 | 22 | 22 | |
| 500V KW | 35 | 4.5 | 5.5 | 4.5 | 7.5 | 10 | 11 | 18.5 | 22 | 30 | 37 | 45 | 55 | |
| 690V KW | 4 | 5.5 | 5.5 | 4.5 | 7.5 | 10 | 11 | 18.5 | 22 | 22 | 45 | 55 | 55 | |
| 1000V KW | - | - | - | - | - | - | - | - | - | - | 30 | 37 | 37 | |
| AC-1(40°c,≤690V) | ||||||||||||||
| /e | 18 | 22 | 22 | 40 | 40 | 40 | 40 | 50 | 60 | 55 | 100 | 120 | 120 | |
| Auxiliary | Frontmount | 3RH19 11 | 3RH19 21 | |||||||||||
| Sidemount | 3RH19 21 | |||||||||||||
