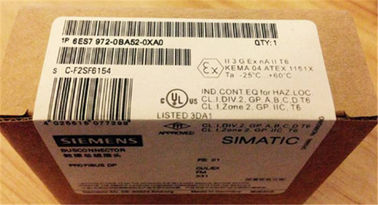

6ES7 972-0BA52 0BB42 PLC Cables And Connectors Simatic PLC ET200 Connector
Application
The RS485 bus connectors for PROFIBUS are used for connecting a PROFIBUS node or a PROFIBUS network component to the bus cable for PROFIBUS.
Function
The bus connector is plugged directly into the PROFIBUS interface (9-pin Sub-D socket) of the PROFIBUS station or a PROFIBUS network component.
The incoming and outgoing PROFIBUS cable is connected in the plug using 4 terminals.
By means of an easily accessible switch which is clearly visible from the outside, the line terminator integrated in the bus connector can be connected (not in the case of 6ES7 972-0BA30-0XA0). In this process, incoming and outgoing bus cables in the connector are separated (separation function).
This must be done at both ends of a PROFIBUS segment.
|
Article number |
6ES7972-0BB42-0XA0 |
6ES7972-0BA30-0XA0 |
6ES7972-0BA52-0XA0 |
|
|---|---|---|---|---|
| Suitability for use | For connecting PROFIBUS nodes to the PROFIBUS bus cable | For connecting PROFIBUS nodes to the PROFIBUS bus cable | For connecting PROFIBUS nodes to the PROFIBUS bus cable | |
| Transmission rate | ||||
| Transfer rate with PROFIBUS DP | 9.6 kbit/s ... 12 Mbit/s | 9.6 kbit/s ... 1.5 Mbit/s | 9.6 kbit/s ... 12 Mbit/s | |
| Interfaces | ||||
| Number of electrical connections | ||||
|
2 | 2 | 2 | |
|
1 | 1 | 1 | |
| Type of electrical connection | ||||
|
Screw | Integrated insulation displacement contacts for 2-core PB FC-installation cables | Integrated insulation displacement contacts for 2-core PB FC-installation cables | |
|
9-pin Sub-D connector | 9-pin Sub-D connector | 9-pin Sub-D connector | |
| Type of electrical connection FastConnect | No | Yes | Yes | |
| Mechanical data | ||||
| Design of terminating resistor | Integrated resistor combination that can be selected with slide switch | no integrated terminating resistor | Integrated resistor combination that can be selected with slide switch | |
| Material of the enclosure | plastic | plastic | plastic | |
| Locking mechanism design | Screw | Screw | ||
| Design, dimensions and weight | ||||
| Type of cable outlet | 35 degree cable outlet | 30 degree cable outlet | 90 degree cable outlet | |
| Width | 15.8 mm | 15 mm | 15.8 mm | |
| Height | 54 mm | 57.6 mm | 59 mm | |
| Depth | 39.5 mm | 39.5 mm | 35.6 mm | |
| Net weight | 67 g | 46 g | 10 g | |
| Permitted ambient conditions | ||||
| Ambient temperature | ||||
|
-25 ... +60 °C | -25 ... +60 °C | ||
|
-40 ... +70 °C | -40 ... +70 °C | -40 ... +70 °C | |
|
-40 ... +70 °C | -40 ... +70 °C | -40 ... +70 °C | |
| Protection class IP | IP20 | IP20 | IP20 | |
| Product properties, functions, components general | ||||
| Product feature | ||||
|
Yes | Yes | Yes | |
| Product component | ||||
|
Yes | No | No | |
|
Yes | Yes | Yes | |
| Standards, specifications, approvals | ||||
| Certificate of suitability | ||||
|
Yes | Yes | Yes | |
|
Yes | Yes | Yes | |
| Reference code | ||||
|
XF | XF | XF | |
