Electricity Type: | AC | Number Of Pole: | 3 |
---|---|---|---|
Phase: | 3 | Rated Voltage: | 24v-660v |
Main Circuit Rating Current: | 115A-780A | Rated Insulation Voltage: | 690V |
Material Of Contacts: | Silver | Rated Frequency: | 50/60Hz |

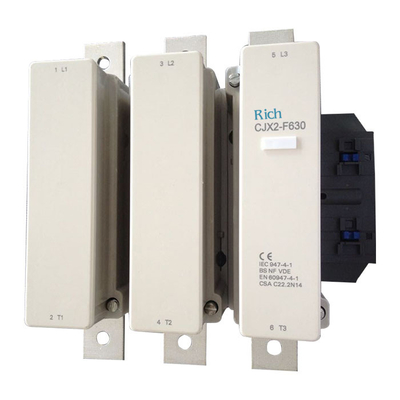

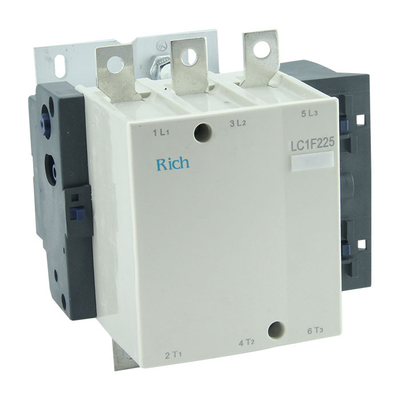

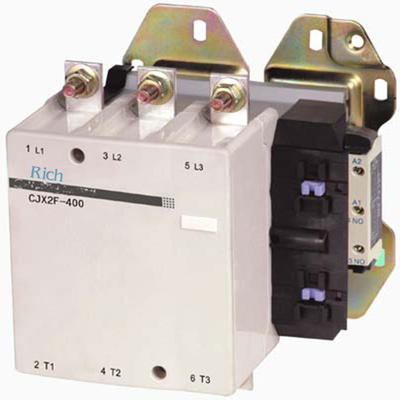

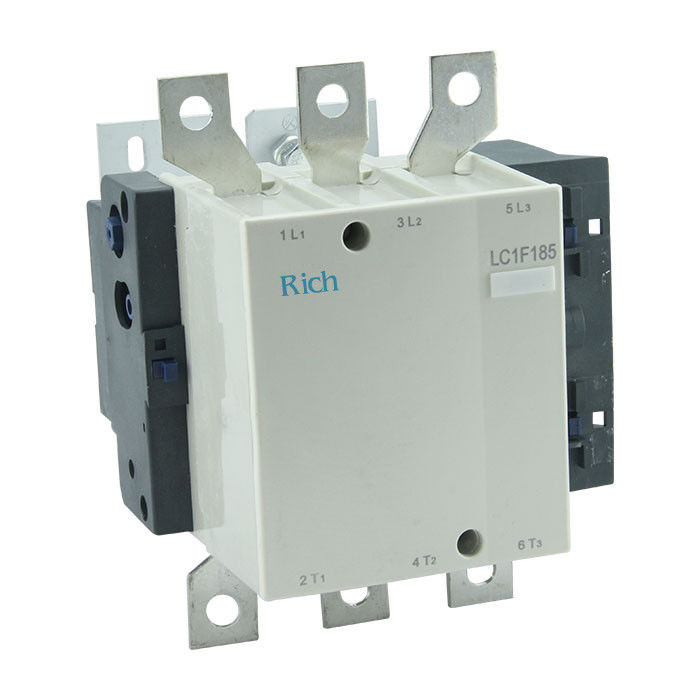

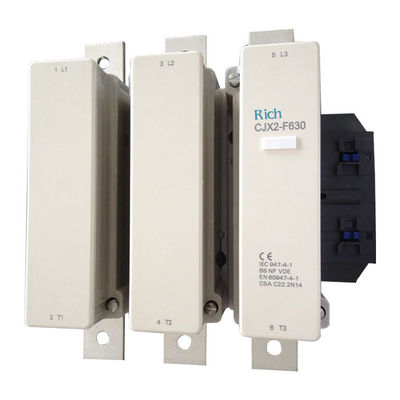

LC1-F 115A-780A big current contactors 400 Amp Magnetic Power Contactor 3 Pole 3 Phase Electrical Contactor Switch
APPLICATION
LC1-F is used in AC 50Hz( or 60Hz ), rated working voltage is up to 660V, and rated current 115-630A under rated voltage 380V and category AC-3, for long-distance making and breaking circuit and frequently trip motor, can be conveniently added auxiliary contact arrangement or air time-delay terminal, and can interoperable with the appropriate thermal overload relay as electromagnetic starter for protecting potential overload circuit.
SPECIFICATIONS
Type | LC1-F115 | LC1-F150 | LC1-F185 | LC1-F225 | LC1-F265 | |
Rated operation current(A) | AC-1 | 115 | 150 | 185 | 225 | 265 |
AC-3 | 200 | 250 | 275 | 315 | 350 | |
Standard power ratings of 3-phase motors AC-3(KW) | 220V | 30 | 40 | 55 | 63 | 75 |
380V | 55 | 75 | 90 | 110 | 132 | |
415V | 59 | 80 | 100 | 110 | 140 | |
440V | 59 | 80 | 100 | 110 | 140 | |
500V | 75 | 90 | 110 | 129 | 160 | |
660V/690V | 80 | 100 | 110 | 129 | 160 | |
1000V | 65 | 65 | 100 | 100 | 147 |
Type |
LC1-F330 | LC1-F400 | LC1-F500 | LC1-F630 | LC1-F780 | |
Rated operation current(A) | AC-1 | 330 | 400 | 500 | 630 | 780 |
AC-3 | 400 | 500 | 700 | 1000 | 1600 | |
Standard power ratings of 3-phase motors AC-3(KW) | 220V/230V | 100 | 110 | 147 | 200 | 220 |
380V/400V | 160 | 200 | 250 | 335 | 400 | |
415V | 180 | 200 | 280 | 375 | 425 | |
440V | 200 | 250 | 295 | 400 | 425 | |
500V | 200 | 257 | 355 | 400 | 450 | |
660V/690V | 200 | 280 | 335 | 450 | 475 | |
1000V | 160 | 185 | 335 | 450 | 450 |
