Factory high quality CJX2 control contactor 32A ac magnetic contactor three poles 220v Electrical Contactor Switch

All Products
Industrial Automation Products (17)
PLC CPU Module (14)
PLC Cables And Connectors (8)
Cable Crimp Connectors (17)
Explosion Proof Switches And Sockets (2)
Electrical Contactor Switch (22)
Motor Control Circuit Breaker (10)
Molded Case Circuit Breaker (14)
Miniature Circuit Breaker (7)
Proximity Sensor Switch (19)
Industrial Control Relay (8)
Push Button Electrical Switch (9)
Variable Frequency Drive Inverter (11)
Electrical Safety Fuses (7)
SMPS Switch Mode Power Supply (6)
Digital Clamp Meter Multimeter (13)
Din Rail Energy Meter (2)
I'm Online Chat Now
Certification
China Yueqing Richuang Automation Equipment Co.,Ltd certification

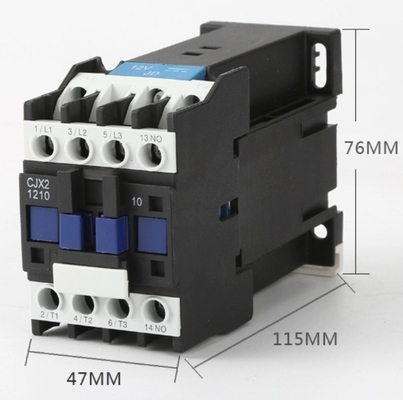

Factory high quality CJX2 control contactor 32A ac magnetic contactor three poles 220v Electrical Contactor Switch

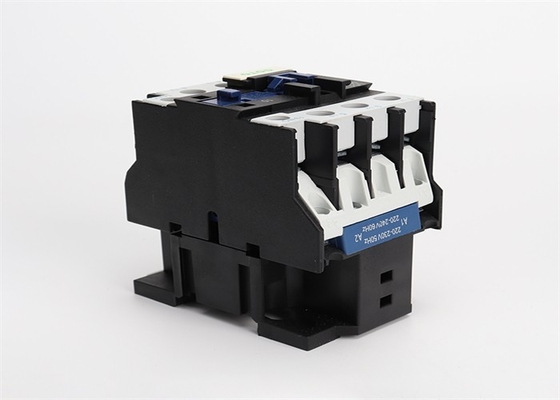

Factory high quality CJX2 control contactor 32A ac magnetic contactor three poles 220v Electrical Contactor Switch

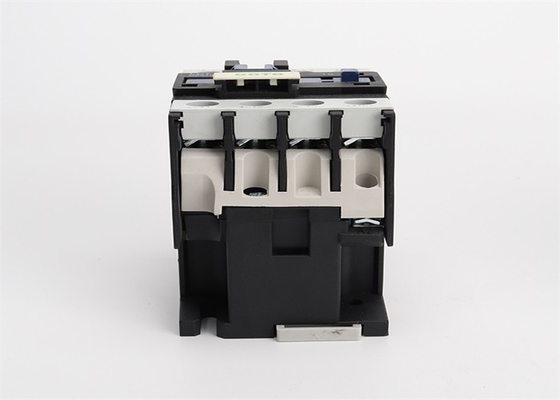

Factory high quality CJX2 control contactor 32A ac magnetic contactor three poles 220v Electrical Contactor Switch Factory high quality CJX2 control contactor 32A ac magnetic contactor three poles 220v Electrical Contactor Switch Factory high quality CJX2 control contactor 32A ac magnetic contactor three poles 220v Electrical Contactor Switch Factory high quality CJX2 control contactor 32A ac magnetic contactor three poles 220v Electrical Contactor Switch

Large Image :  Factory high quality CJX2 control contactor 32A ac magnetic contactor three poles 220v Electrical Contactor Switch Get Best Price

Product Details:
Place of Origin: China
Brand Name: Rich or OEM
Certification: CE/CB/CCC
Model Number: CJX2 CJX2-D
Payment & Shipping Terms:
Minimum Order Quantity: 10 pcs
Price: $2-$200
Packaging Details: Standard Export Package or according to customs request
Delivery Time: 3-20 days
Payment Terms: T/T, Western Union, MoneyGram, L/C, D/A, D/P
Supply Ability: 10000pcs per month
Contact Now
Detailed Product Description
Electricity Type: AC Number Of Pole: 3
Phase: 3 Rated Voltage: 24v-660v
Main Circuit Rating Current: 9A-620A Material Of Contacts: Silver Or Copper
Rated Frequency: 50/60Hz

Factory high quality CJX2 control contactor 32A ac magnetic contactor three poles 220v Electrical Contactor Switch



Application

CJX2 series AC Contactor is suitable for using the circuit up to the rated voltage 660V AC 50Hz or 60Hz, rated current up to 620A, for making, breaking, frequently starting&controlling the AC motor. Combined with the auxiliary contact block, timer delay & machine-interlocking device etc, it becomes the delay contactor, mechanical interlocking contactor, star-delta starter, With the thermal relay. It is combined into the electromagnetic starter. The Contactor is produced according to IEC60947-2.



Specification



Standard

IEC/EN60947-5-1
Model No.

CJX2-09
CJX2-12
CJX2-18
CJX2-25
CJX2-32
Rated Conventional Heating Current
Ith(A)
20
20
32
40
50
Rated Voltage UI(V)
Ui(V)
690
690
690
690
690
Rated Operation Current Ue=380/415V
AC-3 le(A)
9
12
18
25
32
AC-4 le(A)
3.5
5
7.7
8.5
12



Power Controlled 3ph cage Motor AC-3
220/240V KW
2.2
3
4
5.5
7.5
380/415V KW
4
5.5
7.5
11
15
660/690V KW
5.5
7.5
10
15
18.5
Electrical life (×10³operations)

AC-3
1000
1000
1000
1000
800
AC-4
200
200
200
200
200
Main circuit
3P or4p
Auxiliary circuit
Cat.:AC-15,Ue=415V
le=0.95A lth=10A

1NO or 1NC
Standard

IEC/EN60947-5-1
Model No.

CJX2-40
CJX2-50
CJX2-65
CJX2-80
CJX2-95
Rated Conventional Heating Current
Ith(A)
60
80
80
100
125
Rated Voltage UI(V)
Ui(V)
690
690
690
690
690
Rated Operation Current Ue=380/415V
AC-3 le(A)
40
50
65
80
95
AC-4 le(A)
18.5
24
28
37
44



Power Controlled 3ph cage Motor AC-3
220/240V KW
11
15
18.5
22
25
380/415V KW
18.5
22
30
37
45
660/690V KW
30
33
37
45
45
Electrical life (×10³operations)

AC-3
800
600
600
600
600
AC-4
150
150
150
100
100
Main circuit
3P or4p
Auxiliary circuit
Cat.:AC-15,Ue=415V
le=0.95A lth=10A

1NO or 1NC

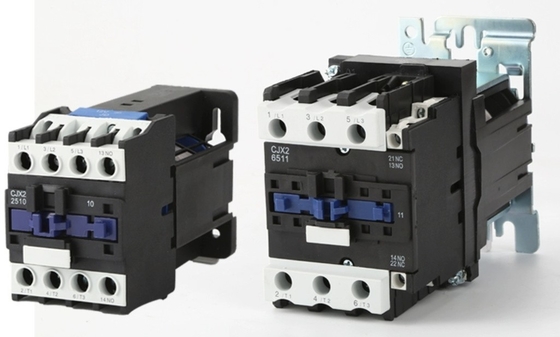

Factory high quality CJX2 control contactor 32A ac magnetic contactor three poles 220v Electrical Contactor Switch 0

FAQ
Q 1. Are you a manufacture factory?
A: Yes, we have metal, plastic, aluminum, copper and other parts processing equipment, assembly and debugging workshop, test and inspection workshop, product laboratory, mold processing factory.

Q 2. Can you accept OEM or ODM service?

A: Sure,we accept OEM/ODM service,and working closely with many multinational group companies. Meanwhile,

provide the best quality and most complete products for our partners.
Q3. Can you provide free sample?
A: Yes, we can offer you free sample to test the quality before formal order, or provide a product testing video according to your requirement.
Q4. What’s the standard of your packaging? Can be customized?
A: 1. We can design and customize packaging for free according to our customers’ demand.
2. Neutral standard export packaging also is available.
