Product Details:
Payment & Shipping Terms:
|
| Type: | Din Rail Terminal Block | Connect Type: | Screw Terminal |
|---|---|---|---|
| Range: | 0.14-240m㎡ | Current: | 17.5A-415A |
| Main Circuit Rating Voltage: | 220V-600V | Voltage: | 690V-1000V |
| Housing: | PA66,UL94V-0 | Pin Header: | Brass,Ni Plated |
UK series din rail terminal block UK 2.5mm plastic screw clamp terminal brass surface mount cable connectors terminals
Application

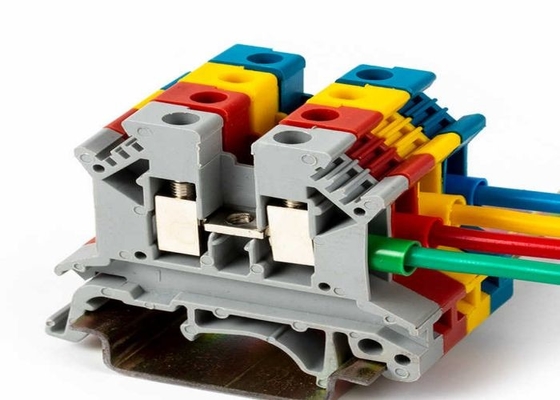

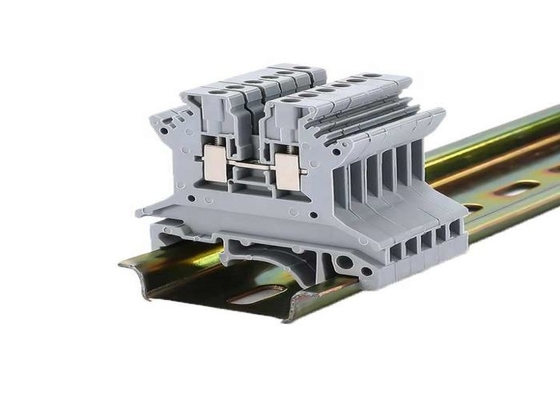

The internationally recognized screw connection meets the most stringent requirements and covers a wide area of application. For the most stringent requirements: the screw connection has also proven itself in the wiring of large conductor cross section Made from engineering flame retardants nylon PA66 with brass screw metal. With universal foot which can be installed on Din Rail NS 35. It can connect two conductors with ease, even large conductor cross sections are not a problem. Electric potential distribution can use fixed bridges in the terminal center or insertion bridges in the clamping space.
Specification
| Module number | Crimping range( m㎡ ) | Current | Voltage | Size ( mm ) | ||||
| Rigid wire Flexible wire | Wide Height thickness | |||||||
| UK-1.5N | 0.14~0.15 | 0.14~0.15 | 17.5A | 690V | 35 | 42 | 4 | |

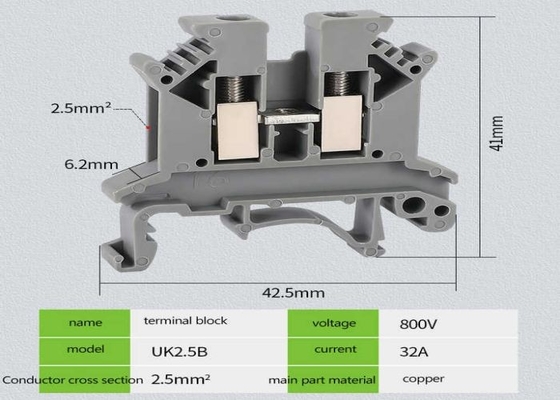

| UK-2.5B | 0.2~4 | 0.2~2.5 | 32A | 690V | 35 | 41 | 6 | |
| UK-3N | 0.4~4 | 0.2~2.5 | 32A | 800V | 35 | 46 | 5 | |
| UK-5N | 0.2~6 | 0.2~4 | 41A | 800V | 35 | 46 | 6 | |
| UK-6N | 0.2~10 | 0.2~6 | 57A | 800V | 35 | 46 | 8 | |
| UK-10N | 0.5~16 | 0.5~10 | 76A | 800V | 35 | 46 | 10 | |
| UK-16N | 0.5~25 | 4~16 | 101A | 800V | 35 | 46 | 12 | |
| UK-25N | 0.4~4 | 0.2~2.5 | 100A | 800V | 35 | 46 | 14 | |
| UK-35N | 10~35 | 10~35 | 125A | 800V | 35 | 51 | 16 | |
| UK-50N | 16~50 | 25~50 | 150A | 1000V | 35 | 77 | 20 | |
| UK-95N | 25~95 | 35~95 | 232A | 1000V | 35 | 90 | 25 | |
| UK-150N | 35~150 | 50~150 | 309A | 1000V | 35 | 109 | 32 | |
| UK-240N | 55~240 | 70~240 | 415A | 1000V | 35 | 126 | 38 | |
| UKK3 | 0.2~4 | 0.2~2.5 | 25A | 300V | 35 | 57 | 5 | |
| UKK5 | 0.5~6 | 0.5~4 | 32A | 500V | 35 | 61 | 6 | |
| UK5-HESI | 0.2~4 | 0.2~4 | 6.3A | 800V | 35 | 50 | 8 | |
| UK10-HESI | 0.5~10 | 0.5~10 | 6.3A | 800V | 35 | 47 | 12 | |
2. All the goods will be packed in export carton or wooden case carefully. We will make sure all product is compete when it arrive. We guarantee that all the packaging is intact when it reaches its destination .
3. The package will be shipped by sea or by air, or by TNT, DHL, FedEx, UPS, EMS or your forwarder . Please inform us directly which method is your preferred way .
