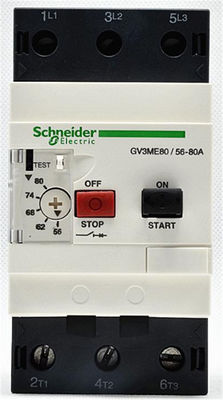

Easily Integrated Motor Control Circuit Breaker With Multiple Configurations

Easily Integrated Motor Control Circuit Breaker With Multiple Configurations

Easily Integrated Motor Control Circuit Breaker With Multiple Configurations
Easily Integrated Motor Control Circuit Breaker With Multiple Configurations Easily Integrated Motor Control Circuit Breaker With Multiple Configurations

Large Image :  Easily Integrated Motor Control Circuit Breaker With Multiple Configurations Get Best Price

Product Details:
Place of Origin: France
Brand Name: Schneider
Certification: CE
Model Number: GV3ME
Payment & Shipping Terms:
Minimum Order Quantity: 1 PCS
Price: consult best discount
Packaging Details: original package
Delivery Time: 2-5 days
Payment Terms: T/T, , Western Union,Paypal,, MoneyGram,, L/C
Supply Ability: 500
Detailed Product Description
Type: MPCB Pole: 3P
Frequency: 50/60 HZ Application: For Motor Starter ProtectIion
Current: Up To 80A Material: Metal
High Light:

motor protection circuit breaker

,

mpcb motor protection circuit breaker

,

TeSys GV3 motor circuit breakers


      Schneider TeSys GV2ME Motor Control Circuit Breaker Motor Starter Protector MPCB

Features
TeSys GV3 motor circuit breaker can be easily integrated within multiple configurations, thanks to its 55 mm standard width and mounting on DIN rail. Conforms to IEC 60947-4-1, IEC/EN 60947-2 and UL 60947-4-1 (transition from UL 508) with complete busbar accessories for quick connection. The new GV3P73 and GV3P80 are extending the range up to 80 A.

Specifications:

  • Three-position (Start/Stop/Tripped) rotary handle, front face padlocking and other accessories
  • Three-phase, 690 V rated operational voltage (Ue) maximum
  • Operating temperature from -20° C to +60° C open operation
  • IP20 level for finger safe protection
  • Trip test button on front face
  • Common add-on contact and trip blocks and accessories with GV2
  • Patented EverLink creep-compensating technology provides many benefits:
    • Spring-based system ensures a long-lasting power connection
    • Reduce overheating leading to trip and also risk during short circuit
    • Ensure the correct torque tightening each time when you install the products
    •

Product Information For Reference

Type Standard power ratings of 3-phase motors 50/60Hz in category AC-3 Current setting range (A)
220V 380V 415V 440V 500V 660V
kW kW kW kW kW kW
GV1-M01 - - - - - - 0.1-0.16
GV1-M02 - - - - - - 0.16-0.25
GV1-M03 - - - - - - 0.25-04
GV1-M04 - - - - - 0.37 0.4-0.63
GV1-M05 - - - 0.37 0.37 0.55 0.63-1
GV1-M06 - 0.37 - 0.55 0.75 1.1 1-1.6
GV1-M07 0.37 0.75 1.1 1.1 1.1 1.5 1.6-2.5
GV1-M08 0.75 1.5 1.5 1.5 2.2 3 2.5-4
GV1-M10 1.1 2.2 2.2 3 3.7 4 4-6
GV1-M14 2.2 4 4 4 5.5 7.5 6-10
GV1-M20 4 7.5 7.5 7.5 10 11 10-16
GV1-M21 5.5 10 9 9 11 15 16-20
GV1-M22 5.5 11 11 11 15 18.5 20-25
GV2-M32 7.5 15 15 15 18.5 26 24-32
GV3-M25 5.5 11 11 11 15 18.5 16-25
GV3-M40 11 18.5 22 22 25 33 25-40
GV3-M63 15 30 33 33 40 55 40-63
GV3-M80 22 40 45 45 55 63 56-80


Main types:

GV3-ME07C 1.6-2.5

GV3-ME08C 2.5-4

GV3-ME010C 4-6.3

GV3-ME014C 6-10

GV3-ME016C 9-14

GV3-ME020C 13-18

GV3-ME021C 17-23

GV3-ME022C 20-25

GV3-ME032C 24-32

GV3-ME040C 25-40

GV3-ME063C 40-63

GV3-ME080C 63-80
