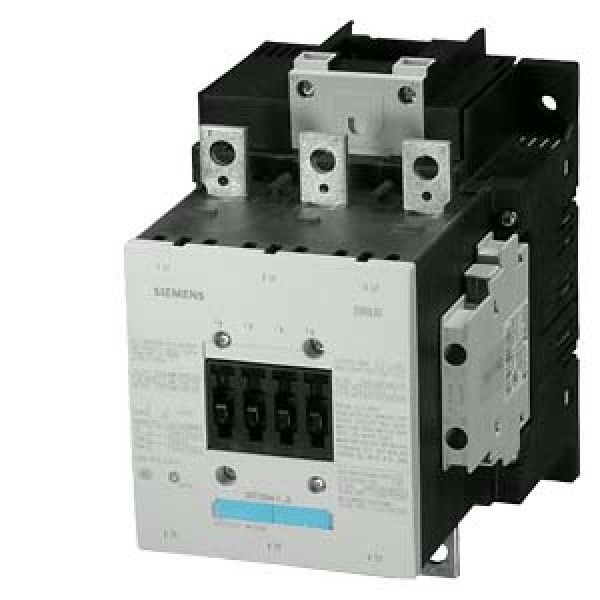

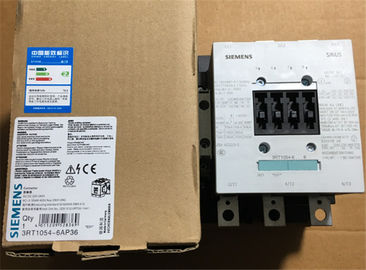

3RT1056-6AF36 Up to 250KW Electrical Contactors 185A Power Contactor For Switching Motor
Power contactor, AC-3 185 A, 90 kW / 400 V AC (50-60 Hz) / DC operation 110-127 V UC Auxiliary contacts 2 NO + 2 NC 3-pole, Size S6 Busbar connections Drive: conventional screw terminal
Application:
The 3RT contactors fulfill the requirements for environment category A.
Note:
When the contactors are used in an environment with frequency converters, the configuration notes in the Manual "SIRIUS – SIRIUS 3RT Contactors/Contactor Assemblies" must be observed,
Refer to the manuals for details of short-circuit protection of the contactors with overload relays
Selection guides are available for the fuseless assembly of motor feeders consisting of a 3RV2 motor starter protector and a 3RT2 contactor,
For the dimensioning of load feeders,
3RT2 contactors
3RU2 thermal overload relays or 3RB3 electronic overload relays can be fitted to the 3RT2 contactors for protection against overload.
3RT1 contactors
3RB2 electronic overload relays can be fitted to the 3RT1 contactors for protection against overload.
3RR2 monitoring relays can be fitted to the 3RT2 contactors for monitoring and measuring in the application.
The quoted rating (in kW) refers to the output power on the motor shaft (according to the nameplate).
The power rating specifications of the contactors in kW (in accordance with IEC 60947-4-1, Table G) are guide values for 4-pole standard motors at 50 Hz AC and specified voltage (e.g. 400 V AC). The actual starting and rated data of the motor to be switched must be considered when selecting the units. The motor current, motor protection device and the permissible contactor current acc. to the utilization category must be aligned with each other
3RT contactors, sizes S00 to S12
Our power range:
IEC/EN 60947‑1,
IEC/EN 60947‑4‑1,
IEC/EN 60947‑5‑1 (auxiliary switches)
| Product brand name | SIRIUS | |
| Product designation | Power contactor | |
| Product type designation | 3RT1 | |
| General technical data | ||
| Size of contactor | S6 | |
| Product extension | ||
| ● function module for communication | No | |
| ● Auxiliary switch | Yes | |
| Surge voltage resistance | ||
| ● of main circuit rated value | 8 kV | |
| ● of auxiliary circuit rated value | 6 kV | |
| maximum permissible voltage for safe isolation | ||
| ● between coil and main contacts acc. to EN 60947-1 | 690 V | |
| Protection class IP | ||
| ● on the front | IP00; IP20 on the front with cover / box terminal | |
| ● of the terminal | IP00 | |
| Shock resistance at rectangular impulse | ||
| ● at AC | 8,5g / 5 ms, 4,2g / 10 ms | |
| ● at DC | 8,5g / 5 ms, 4,2g / 10 ms | |
| Shock resistance with sine pulse | ||
| ● at AC | 13,4g / 5 ms, 6,5g / 10 ms | |
| ● at DC | 13,4g / 5 ms, 6,5g / 10 ms | |
| Mechanical service life (switching cycles) | ||
| ● of contactor typical | 10 000 000 | |
| ● of the contactor with added electronics-compatible auxiliary switch block typical | 5 000 000 | |
| ● of the contactor with added auxiliary switch block typical | 10 000 000 | |
| Reference code acc. to DIN 40719 extended according to IEC 204-2 acc. to IEC 750 | K | |
| Reference code acc. to DIN EN 81346-2 | Q | |
| Ambient conditions | ||
| Installation altitude at height above sea level | ||
| ● maximum | 2 000 m | |
| Ambient temperature | ||
| ● during operation | -25 ... +60 °C | |
| ● during storage | -55 ... +80 °C | |
| Main circuit | ||
| Number of poles for main current circuit | 3 | |
| Number of NO contacts for main contacts | 3 | |
| Operating voltage | ||
| ● at AC-3 rated value maximum | 1 000 V | |
| Operating current | ||
| ● at AC-1 at 400 V | ||
| — at ambient temperature 40 °C rated value | 215 A | |
| ● at AC-1 | ||
| — up to 690 V at ambient temperature 40 °C rated value | 215 A | |
| — up to 690 V at ambient temperature 60 °C rated value | 185 A | |
| — up to 1000 V at ambient temperature 40 °C rated value | 100 A | |
| — up to 1000 V at ambient temperature 60 °C rated value | 100 A | |
| ● at AC-2 at 400 V rated value | 185 A | |
| ● at AC-3 | ||
| — at 400 V rated value | 185 A | |
| — at 500 V rated value | 185 A | |
| — at 690 V rated value | 170 A | |
| — at 1000 V rated value | 65 A | |
| ● at AC-4 at 400 V rated value | 160 A | |
| Connectable conductor cross-section in main circuit at AC-1 | ||
| ● at 60 °C minimum permissible | 95 mm² | |
| ● at 40 °C minimum permissible | 95 mm² | |
| Operating current for approx. 200000 operating cycles at AC-4 | ||
| ● at 400 V rated value | 81 A | |
| ● at 690 V rated value | 65 A | |
| Operating current | ||
| ● at 1 current path at DC-1 | ||
| — at 24 V rated value | 160 A | |
| — at 110 V rated value | 18 A | |
| — at 220 V rated value | 3.4 A | |
| — at 440 V rated value | 0.8 A | |
| — at 600 V rated value | 0.5 A | |
| ● with 2 current paths in series at DC-1 | ||
| — at 24 V rated value | 160 A | |
| — at 110 V rated value | 160 A | |
| — at 220 V rated value | 20 A | |
| — at 440 V rated value | 3.2 A | |
| — at 600 V rated value | 1.6 A | |
| ● with 3 current paths in series at DC-1 | ||
| — at 24 V rated value | 160 A | |
| — at 110 V rated value | 160 A | |
| — at 220 V rated value | 160 A | |
| — at 440 V rated value | 11.5 A | |
| — at 600 V rated value | 4 A | |
| Operating current | ||
| ● at 1 current path at DC-3 at DC-5 | ||
| — at 24 V rated value | 160 A | |
| — at 110 V rated value | 2.5 A | |
| — at 220 V rated value | 0.6 A | |
| — at 440 V rated value | 0.17 A | |
| — at 600 V rated value | 0.12 A | |
| ● with 2 current paths in series at DC-3 at DC-5 | ||
| — at 24 V rated value | 160 A | |
| — at 110 V rated value | 160 A | |
| — at 220 V rated value | 2.5 A | |
| — at 440 V rated value | 0.65 A | |
| — at 600 V rated value | 0.37 A | |
| ● with 3 current paths in series at DC-3 at DC-5 | ||
| — at 24 V rated value | 160 A | |
| — at 110 V rated value | 160 A | |
| — at 220 V rated value | 160 A | |
| — at 440 V rated value | 1.4 A | |
| — at 600 V rated value | 0.75 A | |
| Operating power | ||
| ● at AC-1 | ||
| — at 230 V at 60 °C rated value | 70 kW | |
| — at 400 V rated value | 121 kW | |
| — at 400 V at 60 °C rated value | 121 kW | |
| — at 690 V rated value | 210 kW | |
| — at 690 V at 60 °C rated value | 210 kW | |
| — at 1000 V at 60 °C rated value | 165 kW | |
| ● at AC-2 at 400 V rated value | 90 kW | |
| ● at AC-3 | ||
| — at 230 V rated value | 61 kW | |
| — at 400 V rated value | 90 kW | |
| — at 500 V rated value | 132 kW | |
| — at 690 V rated value | 160 kW | |
| — at 1000 V rated value | 90 kW | |
| Operating power for approx. 200000 operating cycles at AC-4 | ||
| ● at 400 V rated value | 45 kW | |
| ● at 690 V rated value | 65 kW | |
| Thermal short-time current limited to 10 s | 1 480 A | |
| Power loss [W] at AC-3 at 400 V for rated value of the operating current per conductor | 13 W | |
| No-load switching frequency | ||
| ● at AC | 2 000 1/h | |
| ● at DC | 2 000 1/h | |
| Operating frequency | ||
| ● at AC-1 maximum | 800 1/h | |
| ● at AC-2 maximum | 300 1/h | |
| ● at AC-3 maximum | 750 1/h | |
| ● at AC-4 maximum | 130 1/h | |
| Control circuit/ Control | ||
| Type of voltage of the control supply voltage | AC/DC | |
| Control supply voltage at AC | ||
| ● at 50 Hz rated value | 110 ... 127 V | |
| ● at 60 Hz rated value | 110 ... 127 V | |
| Control supply voltage at DC | ||
| ● rated value | 110 ... 127 V | |
| Operating range factor control supply voltage rated value of magnet coil at DC | ||
| ● initial value | 0.8 | |
| ● Full-scale value | 1.1 | |
| Operating range factor control supply voltage rated value of magnet coil at AC | ||
| ● at 50 Hz | 0.8 ... 1.1 | |
| ● at 60 Hz | 0.8 ... 1.1 | |
| Design of the surge suppressor | with varistor | |
| Apparent pick-up power of magnet coil at AC | ||
| ● at 50 Hz | 300 V·A | |
