| Product Name: | TeSys CAD | Application: | Industrial Control |
|---|---|---|---|
| Control Circuit Type: | AC 50/60 Hz | Mounting Support: | Rail Plate |
| Mechanical Durability: | 30 Mcycles | Condition: | New And Original |
| High Light: | contactor relay switch,schneider control relay,220 VAC Contactor Relay Schneider |
||

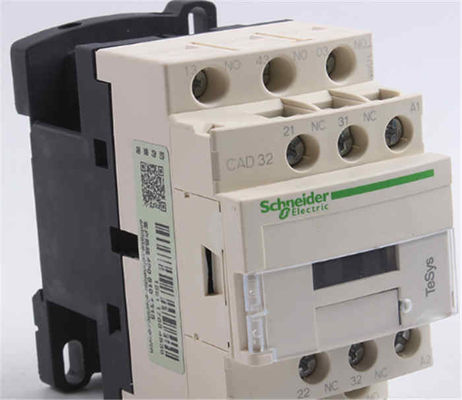

Schneider TeSys CAD32 CAD50 Industrial Control Relay 220 VAC Contactor Relay
Applications
TeSys Control Relays are primarily used in industry, infrastructure and building applications for:
Easy to use interface for electronic devices (example: PLCs)
Benefits
TeSys Control Relays provide a cost-effective solution to a simple application.
Datasheet Of TeSys CAD Industrial Control Relay
| range |
TeSys
|
|
|---|---|---|
| product name |
TeSys CAD
|
|
| product or component type |
Control relay
|
|
| device short name |
CAD
|
|
| contactor application |
Control circuit
|
| utilisation category |
AC-15
AC-14 DC-13 |
|
|---|---|---|
| pole contact composition |
3 NO + 2 NC
|
|
| [Ue] rated operational voltage |
<= 690 V AC 25...400 Hz
|
|
| control circuit type |
AC 50/60 Hz
|
|
| [Uc] control circuit voltage |
220 V AC 50/60 Hz
|
|
| [Uimp] rated impulse withstand voltage |
6 kV conforming to IEC 60947
|
|
| [Ith] conventional free air thermal current |
10 A at <= 60 °C
|
|
| Irms rated making capacity |
140 A AC conforming to IEC 60947-5-1
250 A DC conforming to IEC 60947-5-1 |
|
| [Icw] rated short-time withstand current |
100 A 1 s
120 A 500 ms 140 A 100 ms |
|
| associated fuse rating |
10 A gG conforming to IEC 60947-5-1
|
|
| [Ui] rated insulation voltage |
690 V conforming to IEC 60947-5-1
600 V certifications UL 600 V certifications CSA |
|
| mounting support |
Rail
Plate |
| mechanical durability |
30 Mcycles
|
|
|---|---|---|
| operating rate |
180 cyc/mn
|
|
| inrush power in VA |
70 VA at 20 °C 50 Hz
|
|
| hold-in power consumption in VA |
8 VA at 20 °C 50 Hz
|
|
| minimum switching voltage |
17 V
|
|
| minimum switching current |
5 mA
|
|
| non-overlap time |
1.5 ms on de-energisation (between NC and NO contact)
1.5 ms on energisation (between NC and NO contact) |
|
| insulation resistance |
> 10 MOhm
|
|
| mechanical robustness |
Shocks control relay open 10 Gn for 11 ms IEC 60068-2-27
Shocks control relay closed 15 Gn for 11 ms IEC 60068-2-27 Vibrations control relay open 2 Gn, 5...300 Hz IEC 60068-2-6 Vibrations control relay closed 4 Gn, 5...300 Hz IEC 60068-2-6 |
|
| height |
77 mm
|
|
| width |
45 mm
|
|
| depth |
84 mm
|
|
| product weight |
0.58 kg
|
