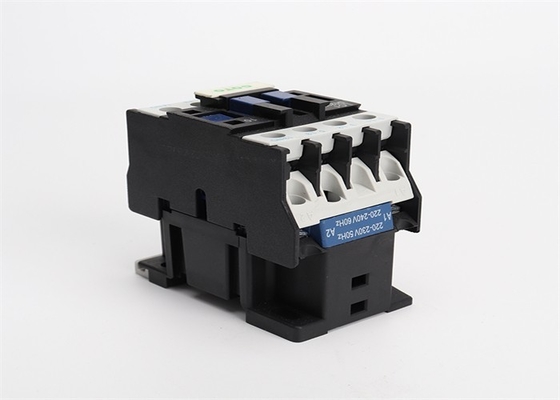

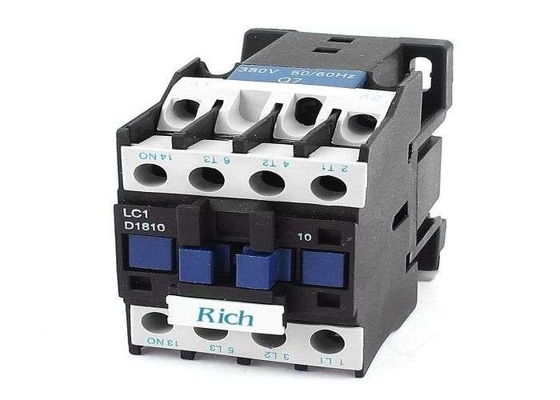

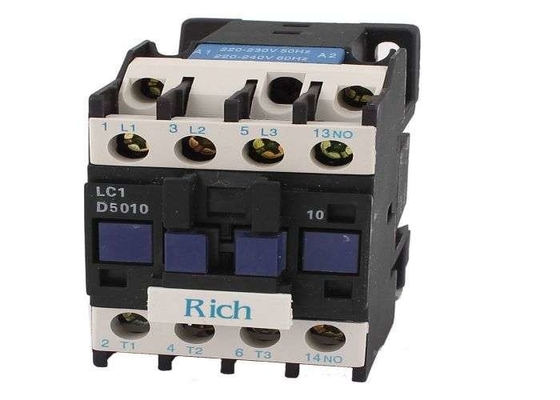

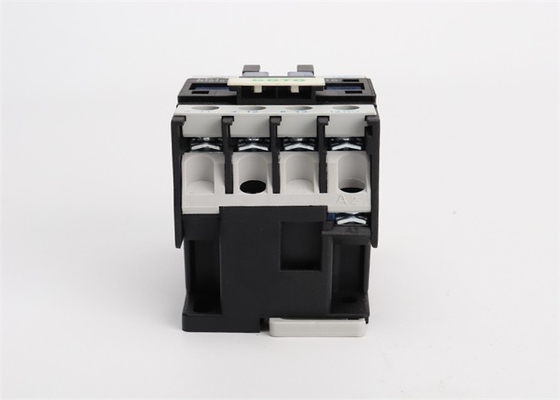

OEM LC1 Magnetic Three Phases AC Electrical Contactor Switch 3 Poles LC1-D

OEM LC1 Magnetic Three Phases AC Electrical Contactor Switch 3 Poles LC1-D

OEM LC1 Magnetic Three Phases AC Electrical Contactor Switch 3 Poles LC1-D
OEM LC1 Magnetic Three Phases AC Electrical Contactor Switch 3 Poles LC1-D OEM LC1 Magnetic Three Phases AC Electrical Contactor Switch 3 Poles LC1-D OEM LC1 Magnetic Three Phases AC Electrical Contactor Switch 3 Poles LC1-D OEM LC1 Magnetic Three Phases AC Electrical Contactor Switch 3 Poles LC1-D

Large Image :  OEM LC1 Magnetic Three Phases AC Electrical Contactor Switch 3 Poles LC1-D Get Best Price

Product Details:
Place of Origin: China
Brand Name: Rich or OEM
Certification: CE/CB/CCC
Model Number: LC1D lc1-d
Payment & Shipping Terms:
Minimum Order Quantity: 10 pcs
Price: $1.5-$20
Packaging Details: Standard Export Package or according to customs request
Delivery Time: 3-20 days
Payment Terms: T/T, Western Union, MoneyGram, L/C, D/A, D/P
Supply Ability: 100000pcs per month
Detailed Product Description
Electricity Type: AC Number Of Pole: 3
Phase: 3 Main Circuit Rating Voltage: Up To 690v
Main Circuit Rating Current: 9A-95A Machanical Life: 20000000
Material: Copper Contact
High Light:

OEM Magnetic Electrical Contactor Switch

,

LC1 AC Electrical Contactor Switch

,

3Poles AC Contactor Switch

Factory OEM LC1 Magnetic Three Phases AC Contactor High Quality 3 Poles LC1-D Electrical Contactor Switch





Application:

LC1-D(CJX2) series AC Contactor is suitable for using the circuit up to the rated voltage 660V AC 50Hz or 60Hz, rated current up to 95A, for making, breaking, frequently starting&controlling the AC motor. Combined with the auxiliary contact block, timer delay & machine-interlocking device etc, it becomes the delay contactor, mechanical interlocking contactor, star-delta starter, With the thermal relay. It is combined into the electromagnetic starter. The Contactor is produced according to IEC60947-2.



Specification



Type CJX2-D09 CJX2-D12 CJX2-D18 CJX2-D25 CJX2-D32 CJX2-D40 CJX2-D50 CJX2-D65 CJX2-D80 CJX2-D95
Rated workingcurrent (A) AC3 9 12 18 25 32 40 50 65 80 95
AC4 3.5 5 7.7 8.5 12 18.5 24 28 37 44
Standardpower ratingsof 3-phasemotors50/60Hz incategory AC-3 220/230V 2.2 3 4 5.5 7.5 11 15 18.5 22 25
380/400V 4 5.5 7.5 11 15 18.5 22 30 37 45
415V 4 5.5 9 11 15 22 25 37 45 45
500V 5.5 7.5 10 15 18.5 22 30 37 55 55
660/690V 5.5 7.5 10 15 18.5 30 33 37 45 55
Rated heat current (A) 20 20 32 40 50 60 80 80 125 125
Electrical life AC3 (x104) 100 100 100 100 80 80 60 60 60 60
AC4 (x104) 20 20 20 20 20 15 15 15 10 10
Mechanical life (x104) 1000 1000 1000 1000 800 800 800 800 600 600
Number of the contacts 3P+NO 3P+NC+NO
3P+NC





Standard Control Circuit Voltage

Volts 24 42 48 110 220 230 240 380 400 415 440 500 600
50Hz B5 D5 E5 F5 M5 P5 U5 Q5 V5 N5 R5 S5 Y5
60Hz B6 D6 E6 F6 M6 - U6 Q6 - - R6 - -
50/60Hz B7 D7 E7 F7 M7 P7 U7 Q7 V7 N7 R7 - -



OEM LC1 Magnetic Three Phases AC Electrical Contactor Switch 3 Poles LC1-D 0



OEM LC1 Magnetic Three Phases AC Electrical Contactor Switch 3 Poles LC1-D 1

Certifications

OEM LC1 Magnetic Three Phases AC Electrical Contactor Switch 3 Poles LC1-D 2

Packaging & Shipping


1. We will ship the items within 3-15 working days after the payment is reached.


2. All the goods will be packed in export carton or wooden case carefully. We will make sure all product is compete when it arrive. We guarantee that all the packaging is intact when it reaches its destination .



3. The package will be shipped by sea or by air, or by TNT, DHL, FedEx, UPS, EMS or your forwarder . Please inform us directly which method is your preferred way .
