| Electricity Type: | AC | Number Of Pole: | 3 |
|---|---|---|---|
| Phase: | 3 | Rated Voltage: | 24V 36V 110V 220V 380V |
| Main Circuit Rating Current: | 9A-95A | Rated Insulation Voltage: | 690V |
| Material Of Contacts: | Silver Or Copper | Rated Frequency: | 50/60Hz |
| High Light: | Electrical Contactor Switch 380v,LC1 Electrical Contactor Switch,380V AC Contactor Switch |
||

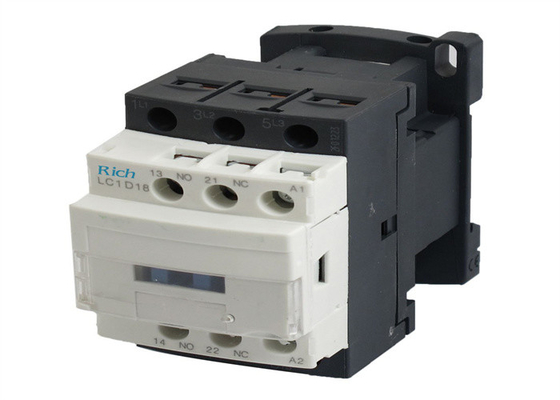

China factory new type LC1 AC Contactor 380v coil motor contactor types of Electrical Contactor Switch
APPLICATION
LC1 Series AC contactors(simplified AC contactor in the following)are suitable for using 50Hz or 60Hz rated rated voltage up to 660V rated current up to 95A.It is maining used for making/breaking electric circuits at a long distance and for frequent starting/stopping and control AC motors.Combined with the auxiliary contact group,air delayer,machine inter locking device etc.It is combined into the delay contactor. into thedelay contactor.Mechanicat inter locking contactor star-triangle starter with the thermal relay.It iscombinde into the tle electromagnetic starter mechanical.
TYPE AND MEANING
Datasheet
| Type | LC1-D09 | LC1-D12 | LC1-D18 | LC1-D25 | LC1-D32 | ||
| Rated working | AC3 | 9 | 12 | 18 | 25 | 32 | |
| current(A) | AC4 | 3.5 | 5 | 7.7 | 8.5 | 12 | |
| AC3capacit of phase | 220V/230V | 2.2 | 3 | 4 | 5.5 | 7.5 | |
| 123 3quirrel-cage motor | 380/440V | 4 | 5.5 | 7.5 | 11 | 15 | |
| AC3(kw) | 415V | 4 | 5.5 | 9 | 11 | 15 | |
| 440V | 4 | 5.5 | 9 | 11 | 18.5 | ||
| 500V | 5.5 | 7.5 | 10 | 15 | 18.5 | ||
| 660/690V | 5.5 | 7.5 | 10 | 15 | 18.5 | ||
| Rated thermal current(A) | 20 | 20 | 32 | 40 | 50 | ||
| Eletrical life | AC4X104 | 20 | 20 | 20 | 20 | 20 | |
| AC3X104 | 100 | 100 | 100 | 100 | 80 | ||
| Mechanical life X 104 | 1000 | 1000 | 1000 | 1000 | 810 | ||
| Number of the contacts | 3P+NO | ||||||
| 3P+NC | |||||||
| Type | LC1-D40 | LC1-D50 | LC1-D65 | LC1-D80 | LC1-D95 | ||
| Rated working | AC3 | 40 | 50 | 65 | 80 | 95 | |
| current(A) | AC4 | 18.5 | 24 | 28 | 37 | 44 | |
| AC3capacit of phase | 220V/230V | 11 | 15 | 18.5 | 22 | 25 | |
| 123 3quirrel-cage motor | 380/440V | 18.5 | 22 | 30 | 37 | 45 | |
| AC3(kw) | 415V | 22 | 25 | 37 | 45 | 55 | |
| 440V | 22 | 30 | 37 | 45 | 55 | ||
| 500V | 22 | 30 | 37 | 55 | 55 | ||
| 660/690V | 30 | 33 | 37 | 45 | 55 | ||
| Rated thermal current(A) | 60 | 80 | 80 | 125 | 125 | ||
| Eletrical life | AC3X104 | 80 | 60 | 60 | 60 | 60 | |
| AC4X106 | 15 | 15 | 15 | 10 | 10 | ||
| Mechanical life X 10o | 800 | 800 | 800 | 600 | 600 | ||
| Number of the contacts | 3P+NC+NO | ||||||
