| Type: | GMC Contactor | Number Of Pole: | 3 |
|---|---|---|---|
| Coil Voltage: | 220v 440v | Main Circuit Rating Current: | 9A-85A |
| Material Of Contacts: | Silver Or Copper | Rated Frequency: | 50/60Hz |
| Electrical Life: | 2500000 | ||
| High Light: | Electrical Contactor Switch 220v,Gmc Electrical Contactor Switch,85A Three Poles Contactor Switch |
||

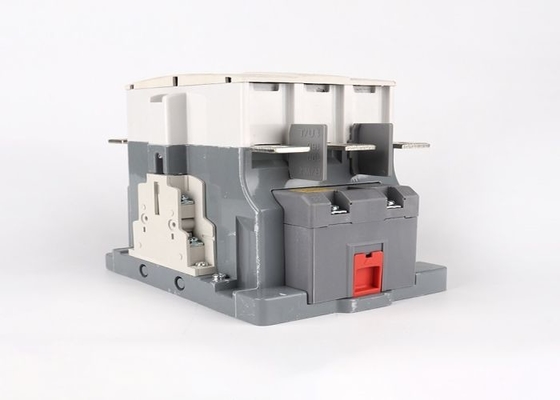

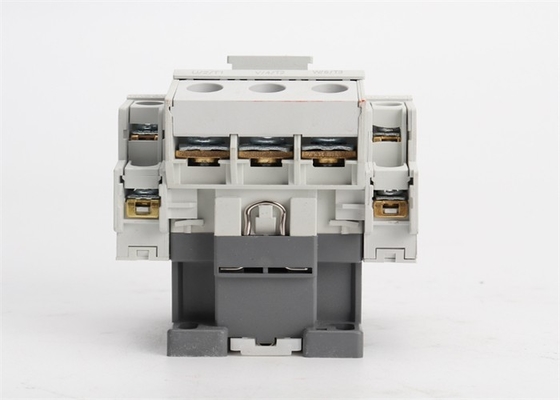

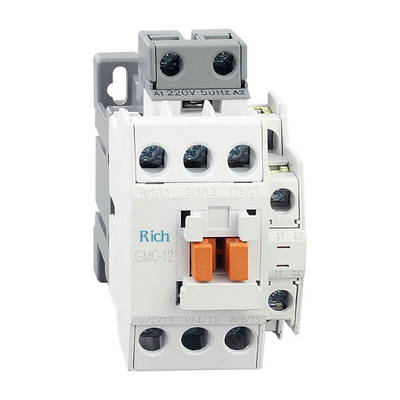

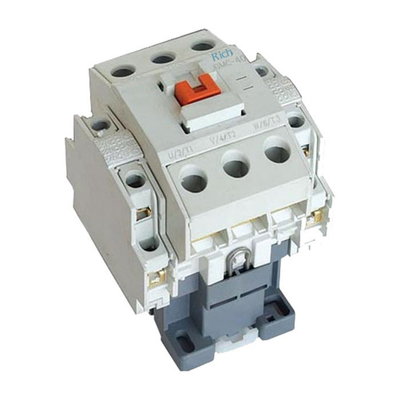

GMC type low voltage contactor gmc 9A-85A water pump three poles contactor 220v 380v Electrical Contactor Switch
Application
GMC series AC contactor is suitable for using in the circuits up to the rated voltage 660VAC 50Hz or 60Hz, rated current 9A to 125A, making and breaking and frequent starting, controls the AC motor. Combined with the auxiliary contact group, air delayer, machine interlocking device etc, it is combined into the delay contactor, mechanical interlocking contactor, drat-delta starter, with the thermal relay, it is combined into the electro magnetic starter. This product conforms to the requirement of IEC 60947 4 -1 & GB14048.4 standards.
Specification
| Type | AC1 duty | AC3 duty | Life time (x 104) |
Aux. contact |
||||
| 200~240V | 380~440V | 500~550V | 690V | Electrical | Mechanical | |||
| GMC-9 | 20A | 2.5kW 11A | 5kW 9A | 4kW 7A | 4kW 5A | 250 | 2500 |
1NO 1NC |
| GMC-12 | 20A | 3.5kW 13A | 5.5kW 12A | 7.5kW 12A | 7.5kW 9A | 250 | 2500 | |
| GMC-18 | 25A | 4.5kW 18A | 7.5kW 18A | 7.5kW 13A | 7.5kW 9A | 250 | 2500 | |
| GMC-22 | 32A | 5.5kW 22A | 11kW 22A | 15kW 22A | 15kW 18A | 250 | 2500 | |
| GMC-32 | 50A | 7.5kW 32A | 15kW 32A | 18.5kW 28A | 18.5kW 21A | 200 | 1500 |
2NO 2NC |
| GMC-40 | 60A | 11kW 40A | 18.5kW 40A | 22kW 32A | 22kW 25A | 200 | 1500 | |
| GMC-50 | 80A | 15kW 55A | 22kW 50A | 30kW 43A | 30kW 33A | 200 | 1000 | |
| GMC-65 | 100A | 18kW 65A | 30kW 65A | 37kW 60A | 37kW 47A | 200 | 1000 | |
| GMC-75 | 110A | 22kW 75A | 37kW 75A | 45kW 64A | 45kW 47A | 200 | 1000 | |
| GMC-85 | 135A | 25kW 85A | 45kW 85A | 45kW 75A | 45kW 52A | 200 | 1000 | |
