| Type: | GMC Contactor | Number Of Pole: | 3 |
|---|---|---|---|
| Phase: | 3 | Main Circuit Rating Current: | 20A-630A |
| Coils Voltage: | AC230V240V380V400V415V440V Optional V | Material Of Contact Kit: | Silver |
| Color: | Blue&Black Classics | Rated Frequency: | 50/60Hz |
| Electrical Life: | 250,000 Times | Mechanical Life: | 10,000,000 Times |
| High Light: | Electrical Contactor Switch 20A,3TF46 Compressor Contactor Switch,OEM 3TF Electrical Contactor Switch |
||

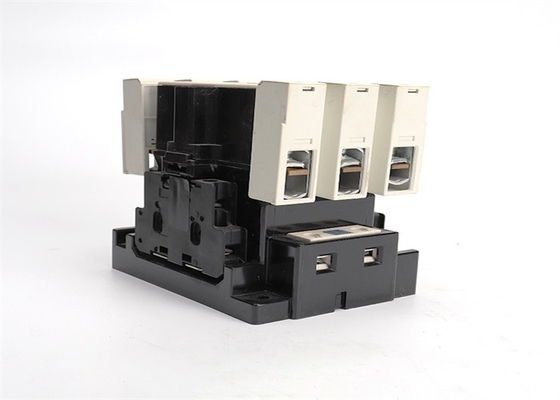

High Quality OEM 3TF contactor for machine tool 3TF46 80A compressor contactor 20A-630A Electrical Contactor Switch
Application
3TF/3TB /CJX1 AC Contactors are suitable in electrical system with AC 50/60Hz, rated operational voltage up to 660V. In AC-3 usage, rated operational voltage up to 380V, rated operational current up to 630A to make or break remote motors or system. They form electromagnetic starters with suitable thermal overload or phase-failure. They are made according to IEC947, BS5424 & VDE0660.
The contactor is a straight motion mechanism having double-breaking contacts. The auxiliary contacts are arranged 2NO.2NC at most, It is employed the flexible locking connection between the contact support and core, three are no arcisolated panle in the Ie≤22A contactors. in the le≥32A contacotors. there are moulded arc-chute with arc-isolated panel. because all contacts are made of high nonfusibility and against corrosion silver alloy. All series products can be mounted by screws, le≤32A contactor also by installation rail.
Specification
| Type | Rated thermal current (A) |
Rated operation current (A) |
(KW) Controllable power of motor |
Type of auxiliary contact |
||||
| AC-3 | AC-4 | |||||||
| 380V | 660V | 380V | 660V | 380V | 660V | |||
| 3TF4011 | 20 | 9 | 7 | 4 | 5.5 | 1.4 | 2.4 | NO NC 1NO+1NC 2NO+2NC |
| 3TF41 | 20 | 12 | 8.5 | 5.5 | 7.5 | 1.9 | 3.3 | |
| 3TF42 | 30 | 16 | 12.5 | 7.5 | 11 | 3.5 | 6 | |
| 3TF43 | 30 | 22 | 16.5 | 10 | 15 | 4 | 6.6 | |
| 3TF44 | 55 | 32 | 24 | 15 | 22 | 7.5 | 13 | |
| 3TF45 | 55 | 38 | 24 | 18.5 | 22 | 9 | 15.5 | |
| 3TF46 | 80 | 45 | 40 | 22 | 37 | 12 | 20.8 | |

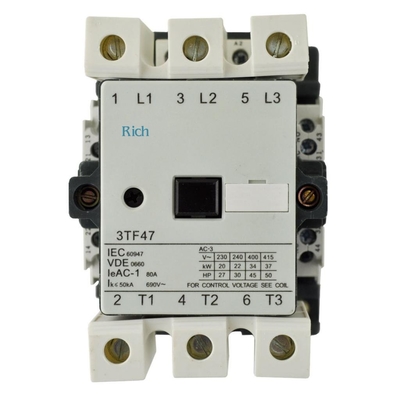

| 3TF47 | 80 | 63 | 60 | 30 | 55 | 14 | 24.3 | 2NC+2NO 4NC+4NO |
| 3TF48 | 100 | 75 | 60 | 37 | 55 | 17 | 29.5 | |
| 3TF49 | 100 | 85 | 80 | 45 | 75 | 21 | 36 | |
| 3TF50 | 160 | 110 | 95 | 55 | 90 | 27 | 46.9 | |
| 3TF51 | 160 | 140 | 120 | 75 | 110 | 35 | 60 | |
| 3TF52 | 200 | 170 | 160 | 90 | 150 | 38 | 66 | |
| 3TF53 | 210 | 205 | 165 | 110 | 160 | 50 | 86 | |
| 3TF54 | 300 | 250 | 230 | 132 | 220 | 58 | 100 | |
| 3TF55 | 300 | 300 | 260 | 160 | 250 | 66 | 114 | |
| 3TF56 | 400 | 400 | 380 | 200 | 355 | 81 | 140 | |
| 3TF68 | 630 | 630 | 600 | 335 | 560 | 160 | 278 | |
