| Type: | LC1 Mini Contactor | Number Of Pole: | 3 |
|---|---|---|---|
| Phase: | 3 | Main Circuit Rating Current: | 6A 9A 12A |
| Main Circuit Rating Voltage: | 220V-600V | Material Of Contact Kit: | Silver |
| Rated Frequency: | 50/60Hz | Mechanical Life: | 10,000,000 Times |
| High Light: | 6A Current Rail Contactor Switch,LC1-K Electrical Contactor Switch,24v Electrical Contactor Switch |
||
HHot sale LC1-K mini contactor for motor control small current 6A rail contactor 24v Electrical Contactor Switch
Application
LC1-K series of AC contactor is used in ac circuit of 50Hz/60Hz, rated voltage up to 690V, rated current up to 12A, toconnect/disconnect or other frequent control of the main circuit and ac motors. They can be conveniently connected to auxiliary contacts and proper thermal relays to protect circuit from overloading. They feature traverse double breaking points, block and zero flashover design, with multi-function combination, small volume, and reliable performance. They are perfect replacement for France TE Lc1-K, LC1-E series products, can be widely applied to magnify/switch signal in micro-electronic interface.
Specification
| Type | LC1-K06 | LC1-K09 | LC1-K12 | ||
| Rated current at AC3 (A) | 6 | 9 | 12 | ||
| Rated working current (Ie)A | 5 | 7.5 | 10 | ||
| Conventional thermal current(Ith)A | 16 | 20 | 20 | ||
| AC-3 Use Group Control Power KW | 220V | 1.5 | 2.2 | 3 | |
| 380/415V | 2.2 | 4 | 5 | ||
| 440/500V | 3 | 4 | 5 | ||
| 660V | 3 | 4 | 5 | ||
| Rated working voltage (Ue)V | 380 660 | ||||
| Rated insulation voltage (Ui)V | 690 | ||||
| AC-3 (6Ie Ie) | Electrical life (times) | 0.5 10 6 | |||
| Operation frequency h-1 | 1200 | ||||
| AC-4 (6Ie Ie) | Electrical life (times) | 10 10 4 | |||
| Operation frequency h-1 | 300 | ||||
| Mechanical life | 3 10 6 | ||||
| LC2-D205 | Conventional thermal current | 6A | |||
| Electrical life (times) | AC-15(360VA) | 0.5 10 6 | |||
| DC-13(33W) | |||||

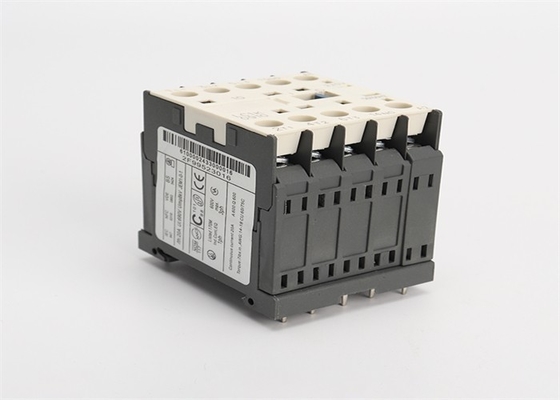

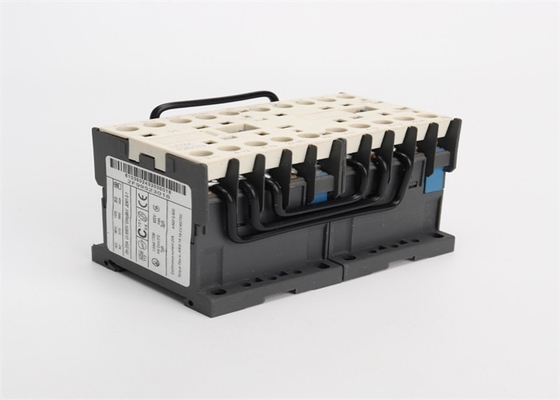

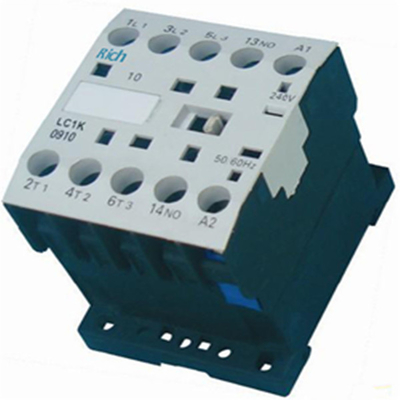

Products pictures
