Product Details:
Payment & Shipping Terms:
|
| Type: | Din Rail Terminal Block | Connect Type: | Screw Terminal |
|---|---|---|---|
| Range: | 0.2-50m㎡ | Current: | 34A-150A |
| Voltage: | 800V | Body Material: | PA66 |
| Pin Header: | Brass,Ni Plated | Color: | Grey, Green, Red, Blue And Etc |
| High Light: | PA66 Grounding Wire Terminal Block,USLKG Cable Crimp Connectors,Cable Crimp Connectors 35mm2 |
||

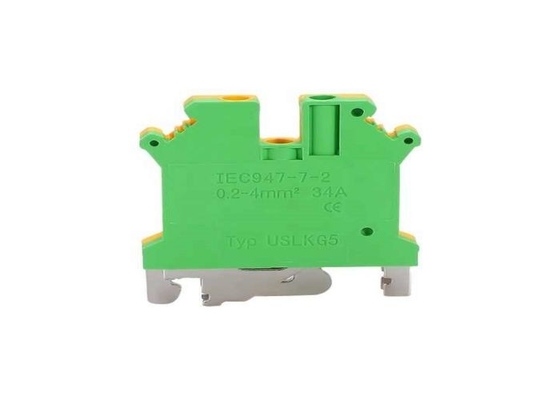

USLKG Ground Modular Terminal Block Din Rail Earth Grounding Wire Terminal block 35m㎡ cable connectors terminals
Application

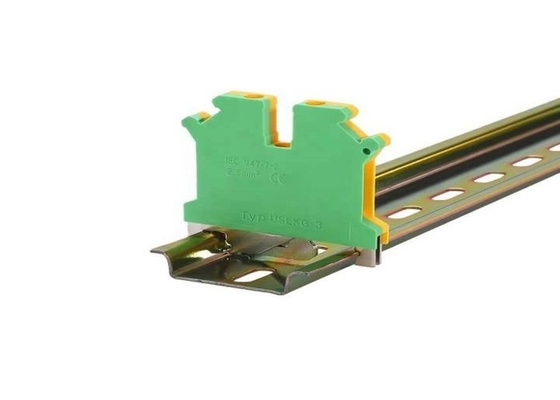

The internationally recognized screw connection meets the most stringent requirements and covers a wide area of application. For the most stringent requirements: the screw connection has also proven itself in the wiring of large conductor cross section Made from engineering flame retardants nylon PA66 with brass screw metal. With universal foot which can be installed on Din Rail NS 35. It can connect two conductors with ease, even large conductor cross sections are not a problem. Electric potential distribution can use fixed bridges in the terminal center or insertion bridges in the clamping space.
Specification

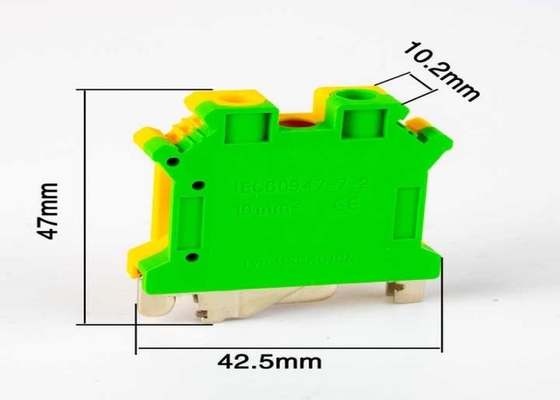

| Module number | Crimping range( m㎡ ) | Current | Voltage | Size ( mm ) | ||||
| Rigid wire Flexible wire | Wide Height thickness | |||||||
| USLKG2.5 | 0.2~4 | 0.2~2.5 | 34A | 800V | 35 | 40 | 6 | |
| USLKG3 | 0.2~4 | 0.2~2.5 | 34A | 800V | 35 | 44 | 5 | |
| USLKG5 | 0.2~4 | 0.2~4 | 34A | 800V | 35 | 44 | 6 | |
| USLKG6 | 0.2~10 | 0.2~6 | 37A | 800V | 35 | 44 | 8 | |
| USLKG10 | 0.2~10 | 0.2~6 | 61A | 800V | 35 | 44 | 10 | |
| USLKG16 | 2.5~25 | 4~16 | 101A | 800V | 35 | 52.8 | 12 | |
| USLKG35 | 0.75~50 | 0.75~35 | 125A | 800V | 35 | 61 | 15 | |
| USLKG50 | 16~50 | 25~50 | 150A | 800V | 35 | 73 | 21 | |
2. All the goods will be packed in export carton or wooden case carefully. We will make sure all product is compete when it arrive. We guarantee that all the packaging is intact when it reaches its destination .
3. The package will be shipped by sea or by air, or by TNT, DHL, FedEx, UPS, EMS or your forwarder . Please inform us directly which method is your preferred way .
FAQ
Q: Does Richuang a factory or trading company?
A: Richuang is a factory that produces ranging from the low-voltage electric products. We have a competitive price on the market. We also have am import and export company
Q: What’s the delivery time when a customer has an order?
A: It is according to the quantity and the product, usually, the goods will be delivered within 2-3 weeks after placing an order.
Q: What is the warranty for each product?
A: Usually the warranty is two-year for low-voltage electrical products.
Q: How about The shipment terms?
A: FOBC&FCIF
Q: How about The payment terms?
A: Usually we accept TT 30% deposit in advance, 70% balance against the copy of B/L or before the shipment.
Q: What is the MOQ?
A:1. The sample order has no MOQ requirements.
2. First-order should be 1,000 USD and the quantity according to the products.
Q: What kind of orders were received by Richuang?
A: OEM, ODM, and special requirements are accepted.
