Product Details:
Payment & Shipping Terms:
|
| Type: | E/VE Tube Crimp Terminal | Material: | Copper And PVC |
|---|---|---|---|
| Application: | All Kinds Of Electrical Appliances | Color: | Red, Yellow, Green, Blue, White, Black |
| Operating Temperature: | -40℃ ~ 125℃ | ||
| High Light: | Pre Insulated Cable Crimp Connectors,Ferrules Cable Crimp Connectors Terminals,Electric Ferrules Lug Wire Terminals |
||

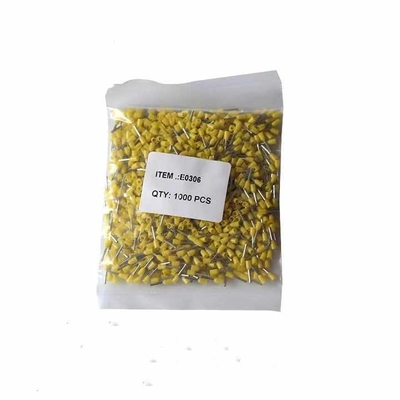

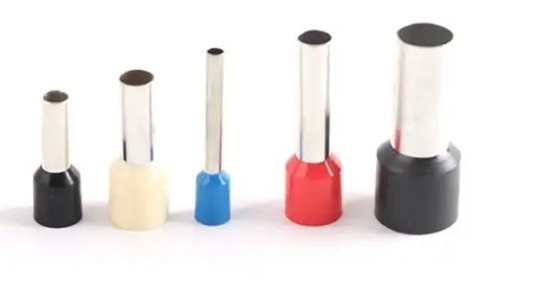

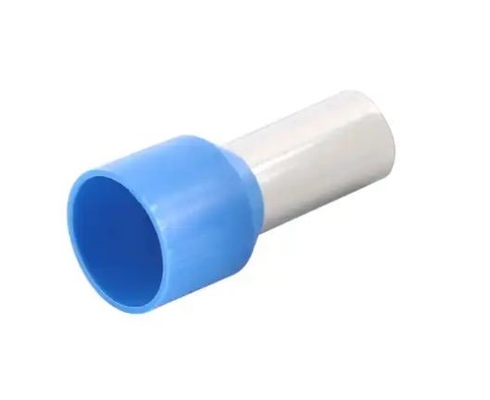

Colorful Insulated crimp terminals tube type electric ferrules lug pre-insulated end cable connectors terminals
Overview:
| E series Insulated cord end terminals | |
| ITEM NO: | E0506~E5025 |
| Metal Material: | Copper & Brass |
| Surface coating: | Electro Tin Plated |
| Insulator material: | Flame retardant PP |
| Application: | Wire crimping |
| Wire Size Range | #22--#1 AWG, 0.5~50mm2 |
| Color: | Red, yellow, blue, green, black, gray, brown, white, orange |
| Packaging: | 1000pcs/bag, 500pcs/bag |

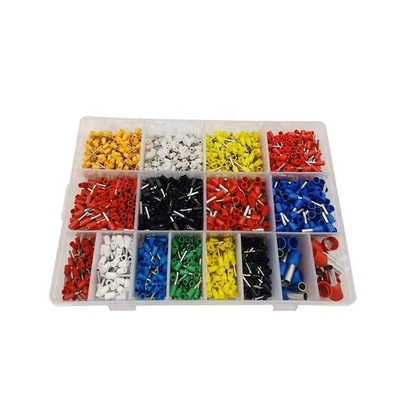

2120 BOXED VERSION
| Item | Description |
| Place of Origin | Zhejiang,China |
| Brand Name | RICH |
| Product name | VE tube terminal |
| Type | VE0508,VE1008, |
| VE1508,VE2508, | |
| VE7508,VE10-12,VE16-12 | |
| Application | All kinds of electrical appliances |
| Material | Copper price |
| Color | Red, Yellow, Green, Blue, White, Black |
| Package | 2120Pcs/Box |
| Feature | Insulation/flame retardant |
| Operating Temperature | -40℃ ~ 125℃ |
| Quality | High quality |
| Packaging Details | VE0508 Yellow/200Pcs |
| VE0508 White /200Pcs | |
| VE1008 Yellow/200Pcs | |
| VE1008 Red /200Pcs | |
| VE1508 Red /200Pcs | |
| VE1508 Black /200Pcs | |
| VE2508 Red /150Pcs | |
| VE2508 Blue /150Pcs | |
| VE7508 Red /100Pcs | |
| VE7508 White /100Pcs | |
| VE7508 Blue /100Pcs | |
| VE7508 Green /100Pcs | |
| VE7508 Yellow /100Pcs | |
| VE7508 Black /100Pcs | |
| VE10-12 Blue /10Pcs | |
| VE16-12 Red /10Pcs |
2. All the goods will be packed in export carton or wooden case carefully. We will make sure all product is compete when it arrive. We guarantee that all the packaging is intact when it reaches its destination .
3. The package will be shipped by sea or by air, or by TNT, DHL, FedEx, UPS, EMS or your forwarder . Please inform us directly which method is your preferred way.
