| Type: | Crimp Terminal | Product Name: | BV Type Insulated Terminal |
|---|---|---|---|
| Material: | PVC | Application: | Cable Connection |
| Color: | Red Blue Yellow | Surface Treatment: | Coated Tin |
| High Light: | Pvc Insulated Butt Wire Connector,Brass Wire Butt Splice Connectors,Tubular Butt Splice Connectors |
||

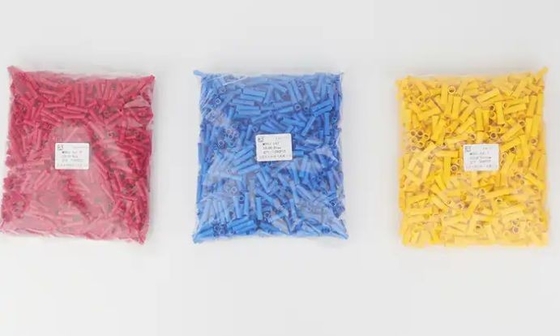

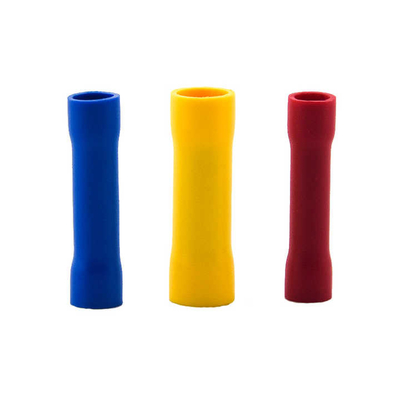

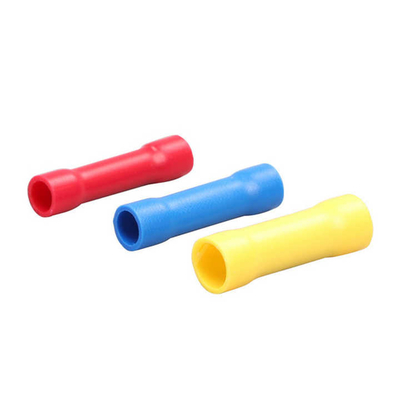

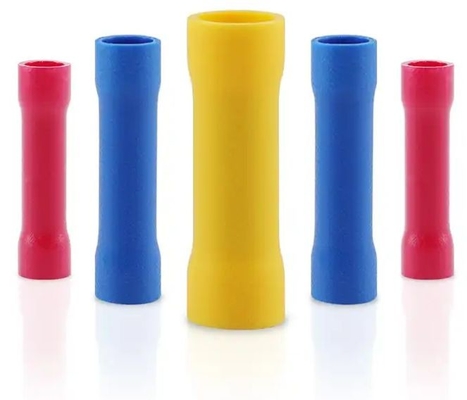

BV Type Pvc Insulated Butt Wire Connector Brass Wire Butt Splice Connectors Tubular Intermediate Terminal Block
BV2 Bullet Shaped Female Insulating Joint Wire Connector Electrical Crimp Terminal AWG16-14 Suit 1.5-2.5mm2
| TEM NO. | Dimension(mm) | Conductor section | 1max | Color | |||
| I | dΦ | L | A.W.G | mm2 | |||
| BV1.25 | 15 | 1.7 | 26 | 22-16 | 0.5-1.5 | 19A | Red |
| BV2 | 15 | 2.3 | 26 | 16-14 | 1.5-2.5 | 27A | Blue |
| BV5.5 | 15 | 3.4 | 26 | 12-10 | 4-6 | 48A | Yellow |
| BV8 | 21 | 4.5 | 32 | 8 | 6-10 | 62A | Red |
| BV14 | 26 | 5.8 | 42 | 6 | 10-16 | 88A | Blue |
| BV22 | 29 | 7.7 | 50 | 4 | 16-25 | 115A | Yellow |
| BV38 | 32 | 9.4 | 55 | 2 | 35-50 | 160A | Red |
About Our Terminal
✔️ANY WIRE WITH EASE - Self Stripping Electrical T Tap Connectors will tap into any wire without needing to cut, strip or solder. Installation operation has never been easier before
✔️PREMIUM QUALITY - 100% Brand new high quality insulated crimp terminals connectors , quality copper and PVC materials processing,Thicker tinned copper contacts will not bend even when tapping into thicker wires. Plastic housing will not open after it has been snapped on the wire
✔️DURABILITY - Each terminal features a thick tinned copper barrel that resists corrosion to hold the wire tight when crimped. High-temperature resistance up to 221degree Fahrenheit
✔️WIDE APPLICATIONS -Wire Connectors +Male Quick Disconnects will last for numerous wiring projects. Marine, automotive, scientific, home wiring projects - you name it. ABILKEEN connector kit will allow you to quickly tap into any wire in any application.
✔️ABILKEEN BRAND QUALITY COMMITMENT - We stand behind the quality of our products. If for any reason you are not satisfied with your purchase, please contact us.
Others terminal block series you may like
2. All the goods will be packed in export carton or wooden case carefully. We will make sure all product is compete when it arrive. We guarantee that all the packaging is intact when it reaches its destination .
3. The package will be shipped by sea or by air, or by TNT, DHL, FedEx, UPS, EMS or your forwarder . Please inform us directly which method is your preferred way.
