Product Details:
Payment & Shipping Terms:
|
| Type: | Needle Crimp Terminal | Model Number: | PTV |
|---|---|---|---|
| Product Name: | Pin Pre-insulated Connector | Usage: | Connecting Cable |

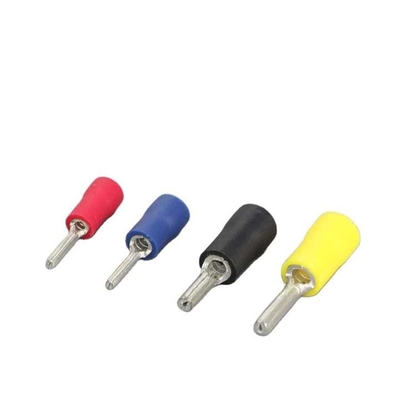

| Color: | Red Blue Black Yellow | Size: | 22-16/16-14/14-12/12-10 |
| Imax: | 19/27/37/48A | ||
| High Light: | Needle Cable Crimp Connectors,Pin Shaped Cable Crimp Connectors,PTV Needle Wire Terminal Block |
||

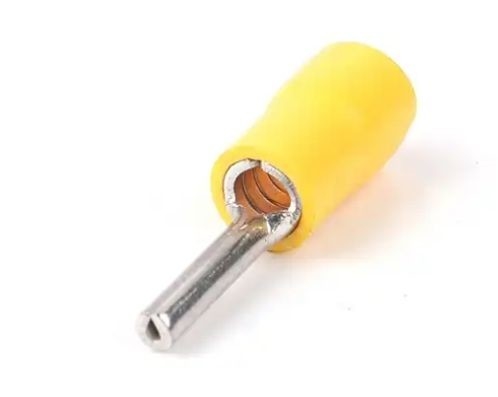

PTV Pin-shaped Terminal electrical wire needle pre-insulated connector terminal needle cable connectors terminals
We specialized in varieties of terminals or connector,in stock,item name: terminal block; ;furcate terminal;
ring terminal;naked terminal;pre insulated terminal;insert needle naked terminal;middle joint; naked terminal
in the middle; male/female terminal, cable tie; joint; brass terminal; terminal crimping tool ; Gland;.etc,
If you have any need,please dont hesitate to contact me.
| Item NO | Dimensiodmm) | Colo | Descrinior | ||||
| B | F | L | E | Dφ | |||

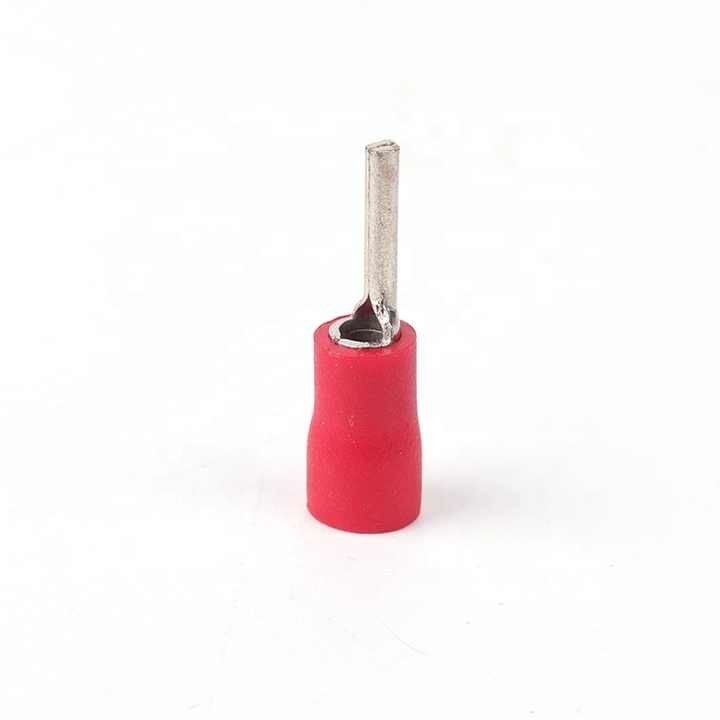

| PTV1.25-9 | 1.9 | 9 | 19 | 10 | 4.3 | red | Lead Section:0.5-1.5mm² A.W.G.22-16) Max Current:lmax=19A Material:Coppe nsulation:PVC Thickness:0.7mm |
| PTV1.25-10 | 1.9 | 10 | 20 | ||||
| PTV1.25-12 | 1.9 | 12 | 22 | ||||
| PTV1.25-13 | 1.9 | 13 | 23 | ||||
| PTV1.25-18 | 1.9 | 18 | 28 | ||||
| PTV2-9 | 1.9 | 9 | 19 | 10 | 4.9 | blue | Lead Section:1.5-2.5mm² (A.W.G.16-14)Max Current:Imax=27A Material:Coppe nsulation:PVC Thickness:0.8mm |
| PTV2-10 | 1.9 | 10 | 20 | ||||
| PTV2-12 | 1.9 | 12 | 22 | ||||
| PTV2-13 | 1.9 | 13 | 23 | ||||
| PTV2-18 | 1.9 | 18 | 28 | ||||
| PTV3.5-10 | 2.8 | 10 | 23.8 | 13 | 6.3 | black | Lead Section:2.5-4mm² A.WG.14-10) max=37A Thickness:1.0mm |
| PTV3.5-13 | 2.8 | 13 | 26.8 | ||||
| PTV5.5-10 | 2.8 | 10 | 23.8 | 13 | 6.7 | yellow | Lead Section.4-6mm² A.WG.12-10) max=48A Thickness:1.0mm |
| PTV5.5-13 | 2.8 | 13 | 26.8 | ||||
| PTV5.5-18 | 2.8 | 18 | 31.8 | ||||
About Our Terminal
✔️ANY WIRE WITH EASE - Self Stripping Electrical T Tap Connectors will tap into any wire without needing to cut, strip or solder. Installation operation has never been easier before
✔️PREMIUM QUALITY - 100% Brand new high quality insulated crimp terminals connectors , quality copper and PVC materials processing,Thicker tinned copper contacts will not bend even when tapping into thicker wires. Plastic housing will not open after it has been snapped on the wire
✔️DURABILITY - Each terminal features a thick tinned copper barrel that resists corrosion to hold the wire tight when crimped. High-temperature resistance up to 221degree Fahrenheit
✔️WIDE APPLICATIONS -Wire Connectors +Male Quick Disconnects will last for numerous wiring projects. Marine, automotive, scientific, home wiring projects - you name it. ABILKEEN connector kit will allow you to quickly tap into any wire in any application.
✔️ABILKEEN BRAND QUALITY COMMITMENT - We stand behind the quality of our products. If for any reason you are not satisfied with your purchase, please contact us.
Others terminal block series you may like
2. All the goods will be packed in export carton or wooden case carefully. We will make sure all product is compete when it arrive. We guarantee that all the packaging is intact when it reaches its destination .
3. The package will be shipped by sea or by air, or by TNT, DHL, FedEx, UPS, EMS or your forwarder . Please inform us directly which method is your preferred way.
