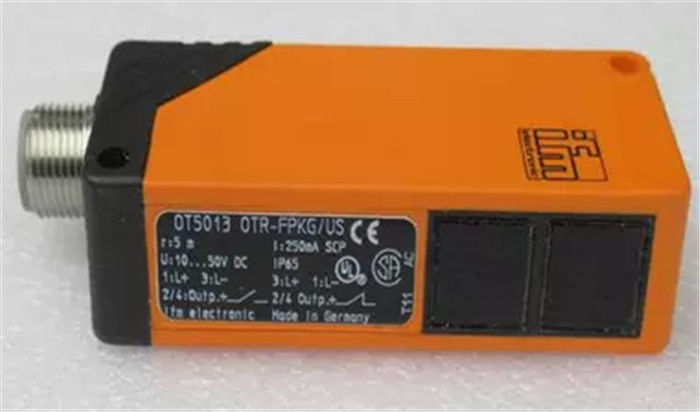

IFM OT5013 Proximity Sensor Switch IFM Retro-reflective Sensor Position Sensors:
For retro-reflective sensors the transmitter and receiver are incorporated into one housing. By means of a reflector the transmitted light is returned to the receiver. Retro-reflective sensors without polarisation filter operate with infrared light, systems with polarisation filter with visible red light.
Technical data Of IFM OT5013 Proximity Sensor Switch
| Application | |||||
|---|---|---|---|---|---|
| Function principle | Retro-reflective sensor | ||||
| Electrical data | |||||
| Operating voltage [V] | 10...50 DC | ||||
| Current consumption [mA] | 40; ((24 V)) | ||||
| Protection class | II | ||||
| Reverse polarity protection | yes | ||||
| Type of light | infrared light | ||||
| Wave length [nm] | 880 | ||||
| Outputs | |||||
| Electrical design | PNP | ||||
| Output function | light-on/dark-on mode; (programmable) | ||||
| Max. voltage drop switching output DC [V] | 2.5 | ||||
| Permanent current rating of switching output DC [mA] | 250 | ||||
| Switching frequency DC [Hz] | 150 | ||||
| Short-circuit protection | yes | ||||
| Type of short-circuit protection | pulsed | ||||
| Overload protection | yes | ||||
| Detection zone | |||||
| Range referred to prismatic reflector [m] | 0.15...5; (Prismatic reflector Ø 80 E20005) | ||||
| Range adjustable | yes | ||||
| Max. light spot diameter [mm] | 262 | ||||
| Light spot dimensions refer to | at maximum range | ||||
| Operating conditions | |||||
| Ambient temperature [°C] | -25...60 | ||||
| Protection | IP 65 | ||||
| Tests / approvals | |||||
| EMC |
|
||||
| MTTF [years] | 583 | ||||
| Mechanical data | |||||
| Weight [g] | 162.2 | ||||
| Housing | rectangular | ||||
| Dimensions [mm] | 75 x 19 x 30 | ||||
| Materials | PBT | ||||
| Lens material |
|
||||
| Lens alignment | side lens | ||||
| Displays / operating elements | |||||
| Display |
|
||||
| Accessories | |||||
| Accessories (supplied) |
|
||||
| Remarks | |||||
| Pack quantity | 1 pcs. | ||||
| Electrical connection | |||||
| Connection | Connector: 1 x M12 | ||||
| Diagrams and graphs | |||||
| excess gain graph | |||||
