Product Details:
Payment & Shipping Terms:
|
| Usage: | Vibration Testing Machine | Power: | Electronic |
|---|---|---|---|
| Vibration Limit: | 50 G Peak | A/D Converter: | 16-bit |
| Sampling Rate: | 20,000 Hz | Sensitivity: | 100 MV G ± 10% |
| High Light: | fluke clamp multimeter,fluke digital thermometer |
||
Fluke 802 805 Digital Clamp Meter Multimeter Fluke Portable Digital Vibration Meter
Product Description

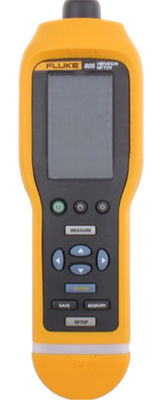

The Fluke 805 Vibration Meter is reliable, repeatable and accurate way to check bearings and overall vibration. Make go or no-go maintenance decisions with confidence. The Fluke 805 Vibration Meter is the most reliable vibration screening device available
Features and Benefits
Use the 805 to check the following machine categories:
| Low frequency range (overall measurement) | 10 Hz to 1,000 Hz |
| High frequency range (CF+ measurement) | 4,000 Hz to 20,000 Hz |
| Severity levels | Good, Satisfactory, Unsatisfactory, Unacceptable |
| Vibration limit | 50 g peak (100 g peak-peak) |
| A/D converter | 16-bit |
| Signal to noise ratio | 80 dB |
| Sampling rate Low frequency High frequency |
20,000 Hz 80,000 Hz |
| Real time clock backup | Coin battery |
| Sensor | |
| Sensitivity | 100 mV g ± 10% |
| Measurement range | 0.01 g to 50 g |
| Low frequency range (overall measurement) | 10 Hz to 1,000 Hz |
| High frequency range | 4,000 Hz to 20,000 Hz |
| Resolution | 0.01 g |
| Accuracy | At 100 Hz ± 5% of measured value |
| Amplitude Units | |
| Acceleration | g, m/sec² |
| Velocity | in/sec, mm/sec |
| Displacement | mils, mm |
| Infrared Thermometer (Temperature Measurement) | |
| Range | -20 °C to 200 °C (-4 °F to 392 °F) |
| Accuracy | ±2 °C (4 °F) |
| Focal length | Fixed, at ~3.8 cm (1.5") |
|
External Sensor Note: Fluke supports but does not provide external sensors |
|
| Frequency range | 10 Hz to 1,000 Hz |
| Bias voltage (to supply power) | 20 V dc to 22 V dc |
| Bias current (to supply power) | Maximum 5 mA |
| Firmware | |
| External interfaces | USB 2.0 (full speed) communication |
| Data capacity | Database on internal flash memory |
| Upgrade | Through USB |
| Memory | Up to 3,500 measurements |
| Radiated Emission | |
| Electrostatic discharge: burst | Standard EN 61000-4-2 |
| Electromagnetic interference | Standard EN 61000-4-3 |
| RE | Standard CISPR 11, Class A |
| Environmental | |
| Operating temperature | -20 °C to 50 °C (-4 °F to 122 °F) |
| Storage temperature | -30 °C to 80 °C (-22 °F to 176 °F) |
| Operating humidity | 10% to 95% RH (non-condensing) |
| Operating/storage altitude | Sea level to 3,048 meters (10,000 feet) |
| IP rating | IP54 |
| Vibration limit | 500g peak |
| Drop test | 1 meter |
| General Specifications | |
| Battery type | AA (2)Lithium Iron Disulfide |
| Battery life | 250 measurements |
| Size (L x W x H) | 24.1 cm x 7.1 cm x 5.8 cm (9.5 in x 2.8 in x 2.3 in) |
| Weight | 0.40 kg (0.89 lb) |
| Connectors | USB mini-B 7-pin, stereo audio output jack (3.5 mm Audio Plug), external sensor jack (SMB connector) |
