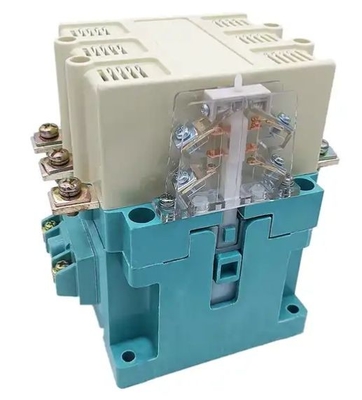

CJ20 400A high power contactor magnetic contactor for industrial control 3 poles ac Electrical Contactor Switch

CJ20 400A high power contactor magnetic contactor for industrial control 3 poles ac Electrical Contactor Switch

CJ20 400A high power contactor magnetic contactor for industrial control 3 poles ac Electrical Contactor Switch
CJ20 400A high power contactor magnetic contactor for industrial control 3 poles ac Electrical Contactor Switch CJ20 400A high power contactor magnetic contactor for industrial control 3 poles ac Electrical Contactor Switch CJ20 400A high power contactor magnetic contactor for industrial control 3 poles ac Electrical Contactor Switch

Large Image :  CJ20 400A high power contactor magnetic contactor for industrial control 3 poles ac Electrical Contactor Switch Get Best Price

Product Details:
Place of Origin: China
Brand Name: Rich or OEM
Certification: CE/CB/CCC
Model Number: CJ20
Payment & Shipping Terms:
Minimum Order Quantity: 5 pcs
Price: $12-$150
Packaging Details: Standard Export Package or according to customs request
Delivery Time: 3-20 days
Payment Terms: T/T, Western Union, MoneyGram, L/C, D/A, D/P
Supply Ability: 50000 pcs per month
Detailed Product Description
Type: CJ20 Series Number Of Pole: 3
Phase: 3 Main Circuit Rating Current: 63A -630A
Main Circuit Rating Voltage: 24-380v Material Of Contact Kit: Silver
Rated Frequency: 50/60Hz Mechanical Life: 10,000,000 Times

CJ20 400A high power contactor magnetic contactor for industrial control 3 poles ac Electrical Contactor Switch



Application

CJ20 series AC contactors are suitable for frequency 50Hz,rated voltage up to 660V,rated current up to 630A,It is mainly used for making or breaking electric circuits at a long distance & for frequent starting & stopping, controlling AC motors.It is used in combination with thermal relay to compose a magnetic motor starter.The product accords with such standards as IEC60947-4-1 & GB1404

Specification

Type Rated insulation voltage (V) Rated thermal current (A) Control power under AC-3 use category Pe Kw
220V 380V 660V 1140V
CJ20-10 690 10 2.2 4 4 -
CJ20-16 16 4.5 7.5 11 -
CJ20-25 32 5.5 11 13 -
CJ20-40 55 11 22 22 -

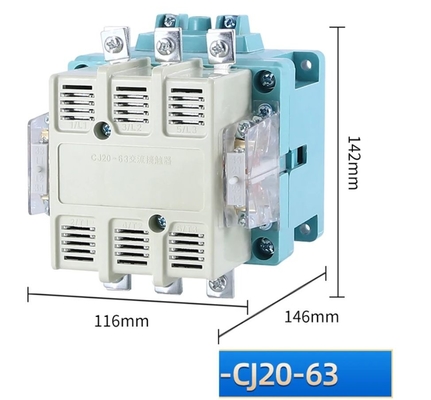

CJ20-63 80 18 30 35 -
CJ20-100 125 28 50 50 -
CJ20-160 200 48 85 85 -
CJ20-160/11 1140 200 - - - 85
CJ20-250 690 315 80 132   -
CJ20-250/06 190 -
CJ20-400 400 115 200 220 -
CJ20-630 630 175 300 - -
CJ20-630/06 350 -
CJ20-630/11 1140 400 - - - 400

CJ20 400A high power contactor magnetic contactor for industrial control 3 poles ac Electrical Contactor Switch 0

CJ20 400A high power contactor magnetic contactor for industrial control 3 poles ac Electrical Contactor Switch 1



Packaging & Shipping
1. We will ship the items within 3-15 working days after the payment is reached.

2. All the goods will be packed in export carton or wooden case carefully. We will make sure all product is compete when it arrive. We guarantee that all the packaging is intact when it reaches its destination .

3. The package will be shipped by sea or by air, or by TNT, DHL, FedEx, UPS, EMS or your forwarder . Please inform us directly which method is your preferred way .

CJ20 400A high power contactor magnetic contactor for industrial control 3 poles ac Electrical Contactor Switch 2
FAQ
Q: Does Richuang a factory or trading company?
A: Richuang is a factory that produces ranging from the low-voltage electric products. We have a competitive price on the market. We also have am import and export company
Q: What’s the delivery time when a customer has an order?
A: It is according to the quantity and the product, usually, the goods will be delivered within 2-3 weeks after placing an order.
Q: What is the warranty for each product?
A: Usually the warranty is two-year for low-voltage electrical products.
Q: How about The shipment terms?
A: FOB C&F CIF
Q: How about The payment terms?
A: Usually we accept TT 30% deposit in advance, 70% balance against the copy of B/L or before the shipment.
Q: What is the MOQ?
A:1. The sample order has no MOQ requirements.
2. First-order should be 1,000 USD and the quantity according to the products.
Q: What kind of orders were received by Richuang?
A: OEM, ODM, and special requirements are accepted.
