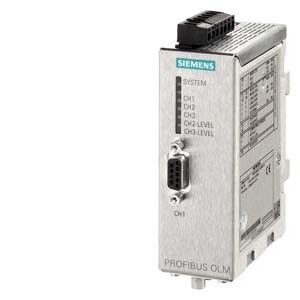

PROFIBUS OLM/G12-1300 V4.0 Optical Link Module SIMATIC PLC Modules
Overview
With the PROFIBUS OLM (Optical Link Modules), optical PROFIBUS networks can be established in linear, star and redundant ring topologies.
The data transfer rate of a fiber optic line is independent of the distance and can be up to 12 Mbit/s.
Possible applications for OLMs include:
| Product type designation | PROFIBUS OLM/G12-1300 V4.0 | |
| PROFIBUS OLM/G12-1300 V4.0 optical link module with 1 RS485 and 2 glass FOC Interfaces (4 BFOC sockets), 1300 Nm shaft Length for large distances with signaling contact and test port | ||
| Transmission rate | ||
| Transfer rate / with PROFIBUS | 9.6 kbit/s ... 12 Mbit/s | |
| Transfer rate / with PROFIBUS PA | 45.45 kbit/s | |
| Interfaces | ||
| Number of electrical/optical connections / for network components or terminal equipment / maximum | 3 | |
| Number of electrical connections | ||
| ● for network components or terminal equipment | 1 | |
| ● for measuring device | 1 | |
| ● for signaling contact | 1 | |
| ● for power supply | 1 | |
| ● for redundant voltage supply | 1 | |
| Type of electrical connection | ||
| ● for network components or terminal equipment | 9-pin Sub-D socket | |
| ● for measuring device | 2-pole terminal block | |
| ● for power supply and signaling contact | 5-pole terminal block | |
| Number of optical interfaces / for fiber optic cable | 2 | |
| Design of the optical interface / for fiber optic cable | BFOC port | |
| Optical data | ||
| Damping ratio / of the FOC transmission link | ||
| ● for glass FOC with 10/125 µm or 9/125 µm / at 0.5 dB/km / maximum | 8 dB | |
| propagation delay [bit] | 6.5 bit | |
| Connectable optical power relative to 1 mW | ||
| ● for glass FOC with 10/125 µm or 9/125 µm / at 0.5 dB/km | -19 dB | |
| Optical sensitivity relating to 1 mW | ||
| ● for glass FOC with 10/125 µm or 9/125 µm / at 0.5 dB/km | -29 dB | |
| Wavelength | ||
| ● for glass FOC with 10/125 µm or 9/125 µm / compatible with interface / at 0.5 dB/km | 1310 nm | |
| Wire length | ||
| ● for glass FOC with 10/125 µm or 9/125 µm / at 0.5 dB/km / maximum | 15 km | |
| Signal-Inputs/outputs | ||
| Operating voltage / of the signaling contacts / at DC / Rated value | 24 V | |
| Operating current / of the signaling contacts / at DC / maximum | 0.1 A | |
| Supply voltage, current consumption, power loss | ||
| Type of voltage / of the supply voltage | DC | |
| Supply voltage / at DC / Rated value | 24 V | |
| Supply voltage / at DC | 18.8 ... 28.8 V | |
| Product component / fusing at power supply input | Yes | |
| Consumed current / at DC / at 24 V / maximum | 0.2 A | |
| Permitted ambient conditions | ||
| Ambient temperature | ||
| ● during operation | 0 ... 60 °C | |
| ● during storage | -40 ... +70 °C | |
| ● during transport | -40 ... +70 °C | |
| Relative humidity / at 25 °C / without condensation / during operation / maximum | 95 % | |
| Protection class IP | IP40 | |
| Design, dimensions and weight | ||
| Design | compact | |
| Width | 39.5 mm | |
| Height | 112 mm | |
| Depth | 74.5 mm | |
| Net weight | 340 g | |
| Mounting type | ||
| ● 35 mm DIN rail mounting | Yes | |
| ● wall mounting | Yes | |
| Product functions / Redundancy | ||
| Product function / Ring redundancy | Yes | |
| Standards, specifications, approvals | ||
| Standard | ||
| ● for FM | FM3611: Class 1, Division 2, Group A, B, C, D / T4, Class 1, Zone 2, Group IIC, T4 | |
| ● for hazardous zone | EN 60079-0: 2006, EN60079-15: 2005, II 3 G Ex nA II T4 KEMA 07 ATEX 0003X | |
| ● for safety / from CSA and UL | UL 60950-1, CSA C22.2 Nr. 60950-1 | |
| ● for hazardous zone / from CSA and UL | UL 1604 and UL 2279-15 (Hazardous Location), CSA C22.2 No. 213-M1987, Class 1 / Division 2 / Group A, B, C, D / T4, Class 1 / Zone 2 / Group IIC / T4 | |
| ● for emitted interference | EN 61000-6-4 (Class A) | |
| ● for interference immunity | EN 61000-6-2 | |
