Product Details:
Payment & Shipping Terms:
|
| Types: | SIMATIC CPU 417-4 | Application: | Industrial Automation |
|---|---|---|---|
| Firmware Version: | V5.3 | Type Of Memory: | RAM |
| Condition: | New And Original | Lead Time: | Stock |
| High Light: | optical link module,central processing unit |
||

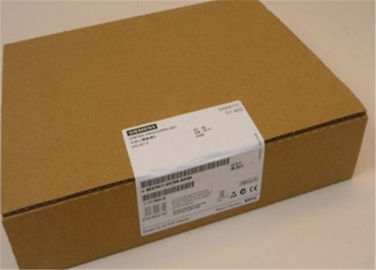

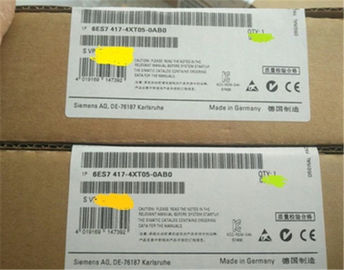

CPU 6ES7417-4XT05-0AB0 S7-400 Central Processing Unit Industrial Automation Products
Overview
The CPU 417-4 is the most powerful SIMATIC S7-400 CPU. The integral PROFIBUS DP interfaces permit direct connection to the PROFIBUS DP fieldbus as master or slave.
Two further DP master systems can be connected via the IF 964-DP interface submodules.
Note:
Only the interface module 6ES7 964-2AA04-0AB0 can be used.
|
Article number |
6ES7417-4XT07-0AB0 |
|
|---|---|---|
|
|
CPU 417-4, 32 MB, 4 INTERFACES |
|
| General information | ||
| Product type designation | CPU 417-4 | |
| HW functional status | 01 | |
| Firmware version | V7.0 | |
| Engineering with | ||
|
STEP 7 V5.4 or higher with HSP 261 | |
| CiR – Configuration in RUN | ||
| CiR synchronization time, basic load | 60 ms | |
| CiR synchronization time, time per I/O byte | 7 µs | |
| Supply voltage | ||
| Rated value (DC) | ||
|
No; Power supply via system power supply | |
| Input current | ||
| from backplane bus 5 V DC, typ. | 1.3 A | |
| from backplane bus 5 V DC, max. | 1.6 A | |
| from backplane bus 24 V DC, max. | 600 mA; 150 mA per DP interface | |
| from interface 5 V DC, max. | 90 mA; At each DP interface | |
| Power loss | ||
| Power loss, typ. | 6.5 W | |
| Power loss, max. | 8 W | |
| Memory | ||
| Type of memory | RAM | |
| Work memory | ||
|
32 Mbyte | |
|
16 Mbyte | |
|
16 Mbyte | |
|
No | |
| Load memory | ||
|
Yes; with Memory Card (FLASH) | |
|
64 Mbyte | |
|
1 Mbyte | |
|
Yes; with Memory Card (RAM) | |
|
64 Mbyte | |
| Backup | ||
|
Yes | |
|
Yes; all data | |
|
No | |
| Battery | ||
| Backup battery | ||
|
225 µA; up to 40 °C | |
|
1 275 µA | |
|
See reference manual, module data, Chapter 3.3 | |
|
5 V DC to 15 V DC | |
| CPU processing times | ||
| for bit operations, typ. | 7.5 ns | |
| for word operations, typ. | 7.5 ns | |
| for fixed point arithmetic, typ. | 7.5 ns | |
| for floating point arithmetic, typ. | 15 ns | |
| CPU-blocks | ||
| DB | ||
|
16 000; Number range: 1 to 16000 | |
|
64 kbyte | |
| FB | ||
|
8 000; Number range: 0 to 7999 | |
|
64 kbyte | |
| FC | ||
|
8 000; Number range: 0 to 7999 | |
|
64 kbyte | |
| OB | ||
|
see instruction list | |
|
64 kbyte | |
|
1; OB 1 | |
|
8; OB 10-17 | |
|
4; OB 20-23 | |
|
9; OB 30-38 (shortest cycle that can be set = 500 µs) | |
|
8; OB 40-47 | |
|
3; OB 55-57 | |
|
4; OB 61-64 | |
|
1; OB 60 | |
|
1; OB 90 | |
|
3; OB 100-102 | |
|
9; OB 80-88 | |
|
2; OB 121, 122 | |
| Nesting depth | ||
|
24 | |
|
2 | |
| Counters, timers and their retentivity | ||
| S7 counter | ||
|
2 048 | |
| Retentivity | ||
|
Yes | |
|
0 | |
|
2 047 | |
|
Z 0 to Z 7 | |
| Counting range | ||
|
0 | |
|
999 | |
| IEC counter | ||
|
Unlimited (limited only by RAM capacity) | |
| S7 times | ||
|
2 048 | |
| Retentivity | ||
|
Yes | |
|
0 | |
|
2 047 | |
|
No times retentive | |
| Time range | ||
|
10 ms | |
|
9 990 s | |
| IEC timer | ||
|
Yes | |
|
SFB | |
|
Unlimited (limited only by RAM capacity) | |
| Data areas and their retentivity | ||
| retentive data area in total | Total working and load memory (with backup battery) | |
| Flag | ||
|
16 kbyte; Size of bit memory address area | |
|
Yes | |
|
MB 0 to MB 15 | |
|
8; in 1 memory byte | |
| Local data | ||
|
64 kbyte | |
|
32 kbyte | |
| Address area | ||
| I/O address area | ||
|
16 kbyte | |
|
16 kbyte | |
| of which distributed | ||
|
2 kbyte | |
|
2 kbyte | |
|
8 kbyte | |
|
8 kbyte | |
| Process image | ||
|
16 kbyte | |
|
16 kbyte | |
|
1 024 byte | |
|
1 024 byte | |
|
244 byte | |
|
Yes | |
Service Range:
we also do S7-400 PLC, S7-1200 PLC, S7-200 PLC, S7-300, S7-400, ET200, HMI, TOUCH PANEL, TDC, 6ES5, 6ES7, 6DD, controller, CNC
S5-100U,115U,155U PLCs
SIMATIC S7-200,SIMATIC S7-300,SIMATIC S7-400
LOGO , PG,SIMATIC HMI, Wincc
ET200M, ET200S, Profibus
MicroMaster 420, MicroMaster 430, MicroMaster 440 , VFD
, SINAMICS,, G110, G120, drive
1.All goods has 365days warranty.
2.Our warehouse always double check all the products before shipping to make sure correct.
3.All parts we sell has 30 days return policy from the day of shipment, but if the damage is man-made,we will be unable to change for you.
